LT1 2200cc injectors 210lb for Chevrolet Camaro Z28, B4C and SS 1993–1997
LT1 2200cc injectors 210lb for Chevrolet Camaro Z28, B4C and SS 1993–1997
All wiring harness orders will be shipped after our engineer Nathan confirms the details by email.

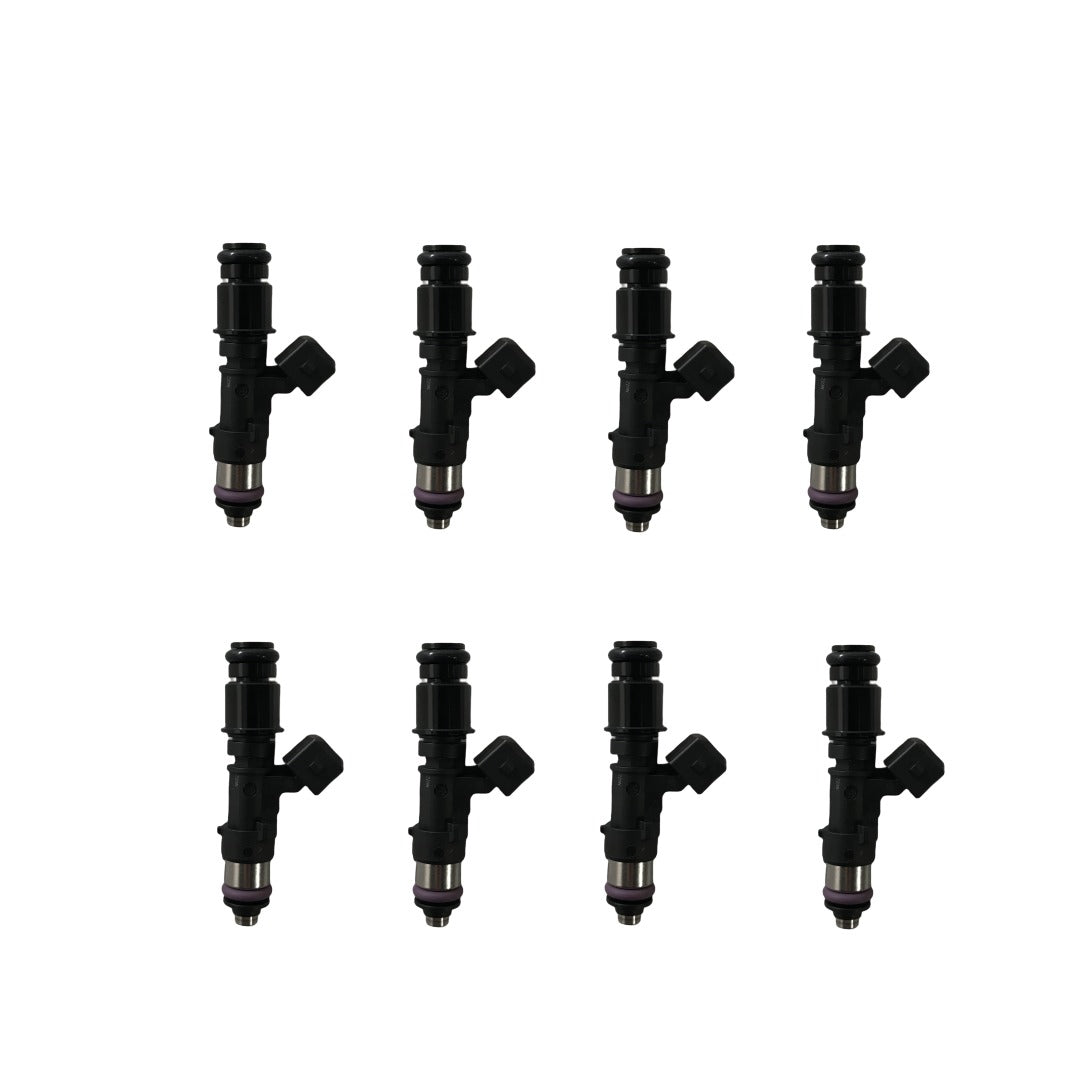

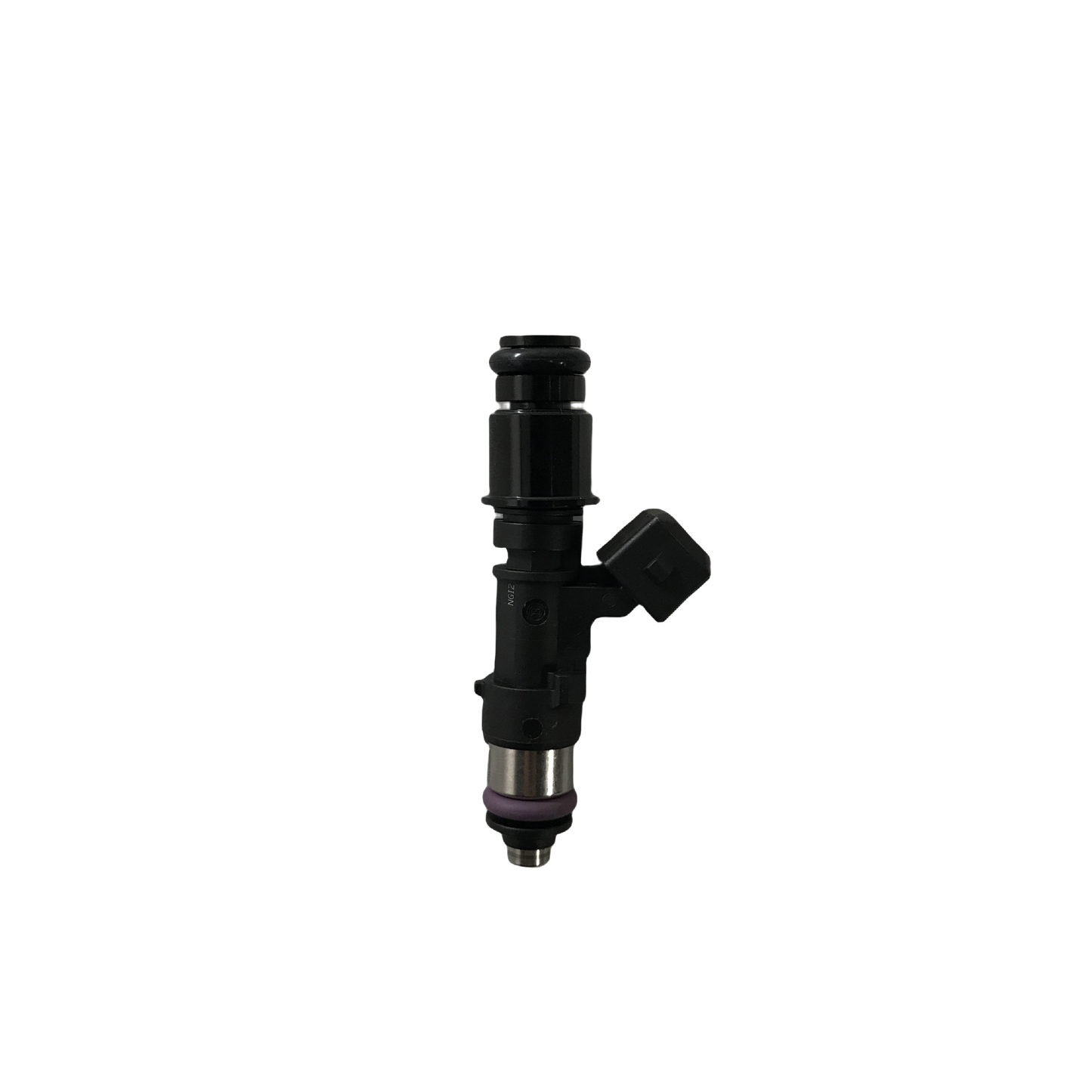

Upgrade your Chevrolet Camaro Z28, B4C, or SS from 1993-1997 with this set of 8 LT1 2200cc injectors. With a fuel flow rate of 210lb, these injectors will provide increased fuel delivery for improved engine performance. Made specifically for these models, get ready for a smoother and more powerful ride.
WARNING: The fuel rail and fuel system must be cleaned before install the injectors.
Quantity: 8 fuel injectors (1 piece/box)
Overall Length: 77mm
O-ring seat to seat Dimension: 60mm
Top o-ring: 14mm
Bottom o-ring: 14mm
Injector Body Diameter: 15.2mm
O-ring centerline to centerline Dimension: 65mm
Connector: EV1 Minitimer Jetronic ( EV1 to EV6/PNP/OBD2 adapters available)
Static flow rate: 210lb/hr @ 43.5PSI (3BAR) w/Gas 2200cc/min
Dead time: 0.45ms at 14 volts
Coil resistance: 9.1 Ohms / High Impedance
Spray pattern: Conical (30 degree)
Spray angle: Neutral (0 degree)
Acceptable fuels: Gas/Petrol, alcohol/methanol, E85, CNG
Unacceptable fuels: Gas/Petrol containing MTBE, specifically VP Q16 and VP Import or other MTBE oxygenated fuels
Vehicle Compatibility: LT1 engine
1992–1996 Chevrolet Corvette C4
1993–1997 Chevrolet Camaro Z28, B4C and SS
1993–1997 Pontiac Firebird Formula, Trans Am, and Firehawk
1994-1996 Buick Roadmaster
1994–1996 Chevrolet Caprice
1994–1996 Chevrolet Caprice Police Package
1994–1996 Chevrolet Impala SS
1994–1996 Chevrolet Caprice Wagon
1994–1996 Cadillac Fleetwood
