LSA 210lb 2200cc Injectors 8pcs Upgrade for Chevrolet Camaro ZL1 6.2L 2012–2015

LSA 210lb 2200cc Injectors 8pcs Upgrade for Chevrolet Camaro ZL1 6.2L 2012–2015

All wiring harness orders will be shipped after our engineer Nathan confirms the details by email.

$600.00 USD
$690.00 USD $600.00 USD
Sale Sold out
Shipping calculated at checkout.

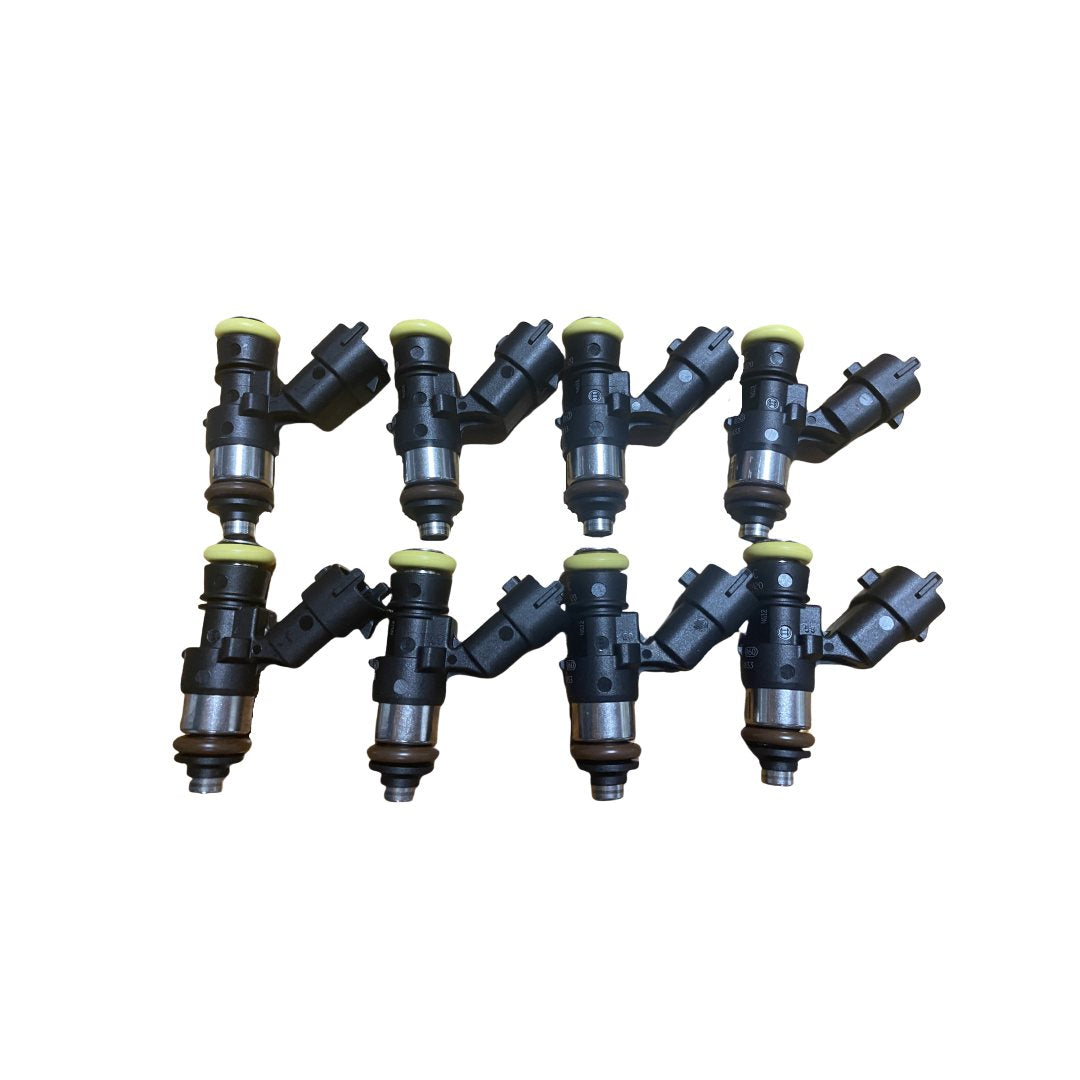

    Set of 8 high performance band new Bosch 2200cc injectors sold with the retail box in stock. The high impedance 210lb injectors include 14mm top and bottom o-rings. Direct plug and play for Chevrolet Camaro ZL1 2012–2015, Cadillac CTS-V 2009–2015 with 6.2L V8 LSA engine.

    Product Details:

    WARNING: The fuel lines must be cleaned before replacing the fuel injectors.

    Name: BOSCH NGI-2-K
    Quantity: 8 fuel injectors (1 piece/box)
    Overall Length: 49mm
    O-ring seat to seat Dimension: 34mm
    Top o-ring: 14mm
    Bottom o-ring: 14mm
    Injector Body Diameter: 15.2mm
    O-ring centerline to centerline Dimension: 38mm
    Connector: Bosch (Comes with EV6 / EV1 / OBD2 / Denso PNP connectors)
    Static flow rate: 210lb/hr @ 43.5PSI (3BAR) w/Gas 2200cc/min
    Dead time: 0.45ms at 14 volts
    Coil resistance: 9.1 Ohms / High Impedance
    Spray pattern: Conical (30 degree)
    Spray angle: Neutral (0 degree)
    Acceptable fuels: Gas/Petrol, alcohol/methanol, E85, CNG
    Unacceptable fuels: Gas/Petrol containing MTBE, specifically VP Q16 and VP Import or other MTBE oxygenated fuels
