Custom LS swap wiring harness

LS4 2200cc Injectors 210lb 8pcs for Buick LaCrosse Super 2008–2009

LS4 2200cc Injectors 210lb 8pcs for Buick LaCrosse Super 2008–2009

All wiring harness orders will be shipped after our engineer Nathan confirms the details by email.

Regular price $600.00 USD
Regular price $690.00 USD Sale price $600.00 USD
Sale Sold out
Shipping calculated at checkout.

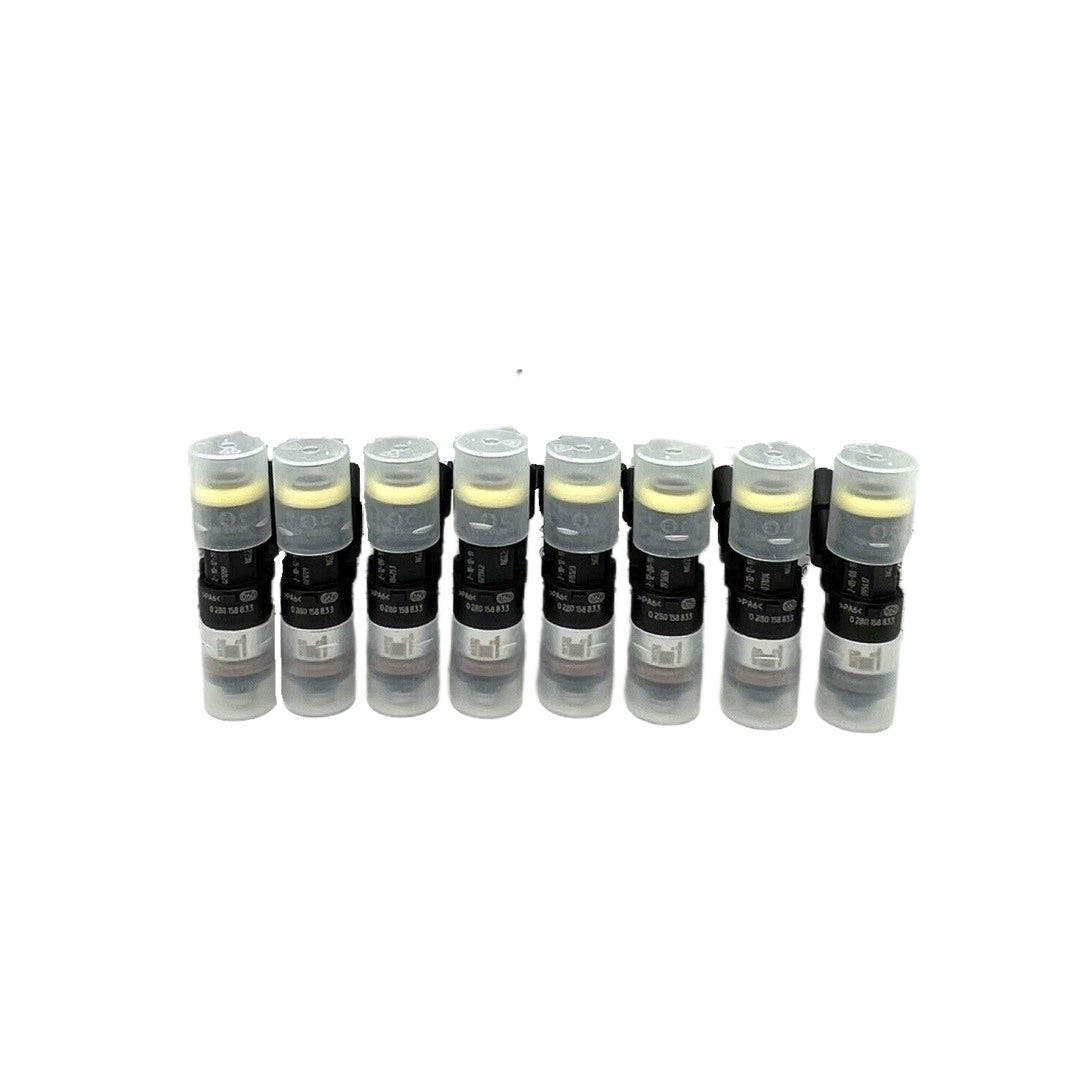

    Set of 8 high impedance saturated ball & seat Bosch 2200cc injectors sold with retail box. Direct plug and play for LS4 engine including Pontiac Grand Prix GXP 2005–2008, Chevrolet Monte Carlo SS 2006–2007, Buick LaCrosse Super 2008–2009. The high performance Bosch 210lb injectors designed to seamlessly fit LS4 engine, installation is straightforward, and these injectors are ready to be put to use.

    Product Detail:

    The fuel lines must be cleaned before replacing the fuel injectors.

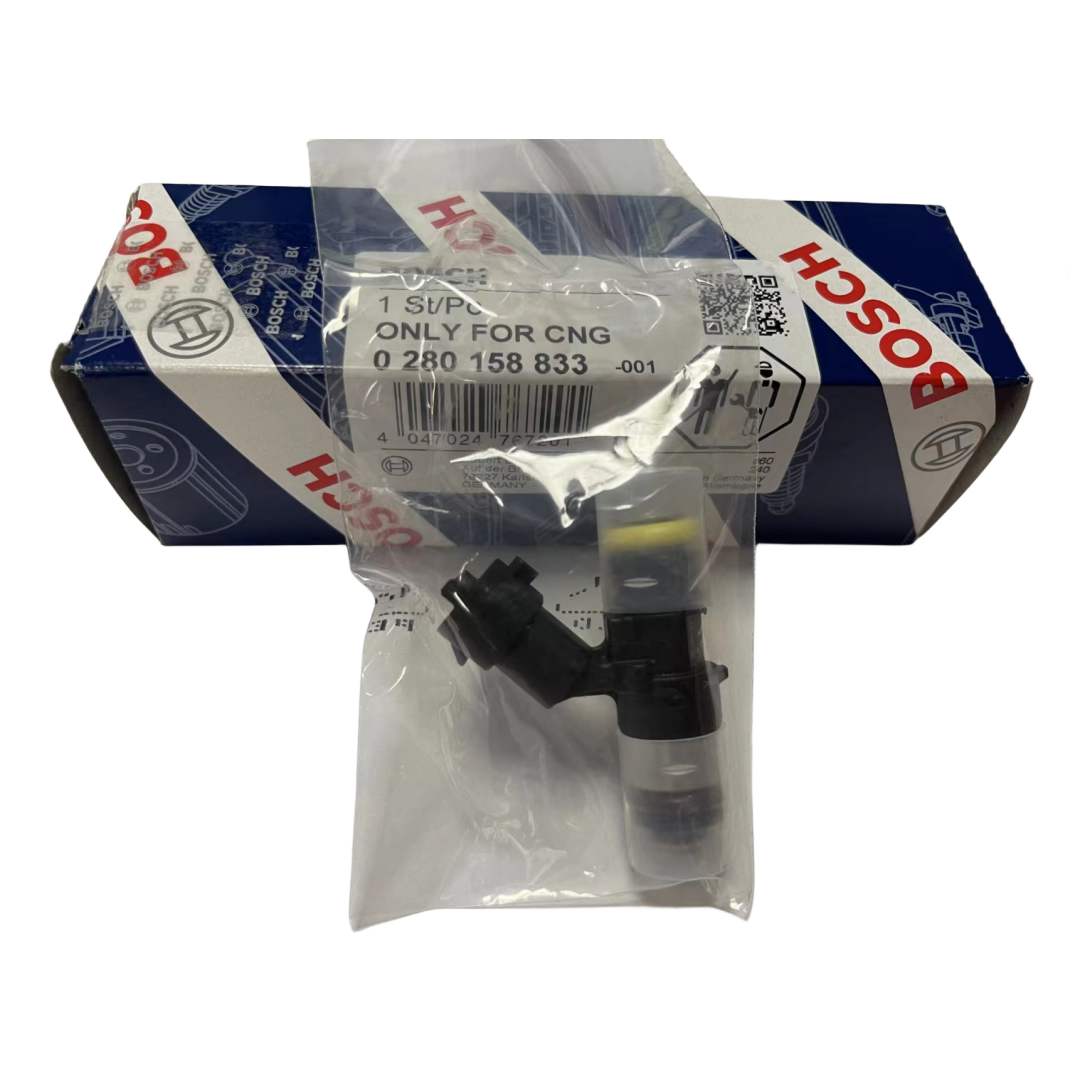

    Name: BOSCH NGI-2-K
    Quantity: 8 fuel injectors (1 piece/box)
    Overall Length: 49mm
    O-ring seat to seat Dimension: 34mm
    Top o-ring: 14mm
    Bottom o-ring: 14mm
    Injector Body Diameter: 15.2mm
    O-ring centerline to centerline Dimension: 38mm
    Connector: Bosch (Comes with EV6 / EV1 / OBD2 / Denso PNP connectors)
    Static flow rate: 210lb/hr @ 43.5PSI (3BAR) w/Gas 2200cc/min
    Dead time: 0.45ms at 14 volts
    Coil resistance: 9.1 Ohms / High Impedance
    Spray pattern: Conical (30 degree)
    Spray angle: Neutral (0 degree)
    Acceptable fuels: Gas/Petrol, alcohol/methanol, E85, CNG

    LS4 engine:

    2005–2008 Pontiac Grand Prix GXP
    2006–2009 Chevrolet Impala SS
    2006–2007 Chevrolet Monte Carlo SS
    2008–2009 Buick LaCrosse Super
