LS2 2200cc Injectors 210lb for 2005–2006 Vauxhall Monaro VXR HSV Coupe GTO SV6000

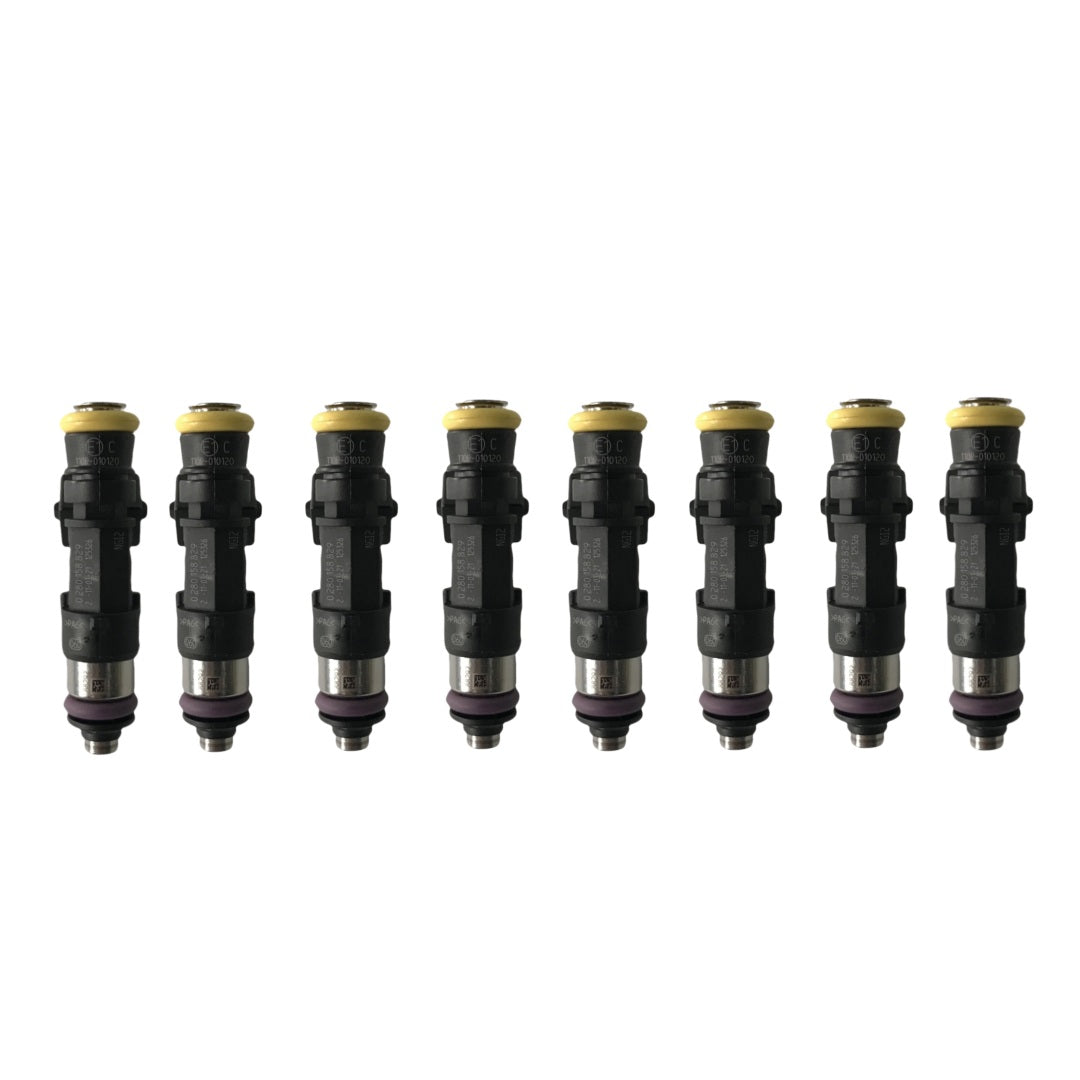

Upgrade your engine's performance with this set of 8 Bosch 210lb fuel injectors. Compatible with LS2 6.0L engines in 2005-2006 Vauxhall Monaro VXR, 2005-2006 HSV Coupe GTO, and 2005-2006 HSV SV6000 models. With 14mm top and bottom o-rings, experience a boost in power and efficiency.

Product Parameters:

WARNING: The fuel rail and fuel system must be cleaned before install the injectors.

Name: 2200cc NGI2
Part number: 0280158829
Quantity: 8 fuel injectors (1 piece/box)
Overall Length: 65mm
O-ring seat to seat Dimension: 48mm
Top o-ring: 14mm
Bottom o-ring: 14mm
Injector Body Diameter: 15.2mm
O-ring centerline to centerline Dimension: 53mm
Connector: EV1 Minitimer Jetronic ( EV1 to EV6/PNP/OBD2 adapters available)
Static flow rate: 210lb/hr @ 43.5PSI (3BAR) w/Gas 2200cc/min
Dead time: 0.45ms at 14 volts
Coil resistance: 9.1 Ohms / High Impedance
Spray pattern: Conical (30 degree)
Spray angle: Neutral (0 degree)
Acceptable fuels: Gas/Petrol, alcohol/methanol, E85, CNG
Unacceptable fuels: Gas/Petrol containing MTBE, specifically VP Q16 and VP Import or other MTBE oxygenated fuels
