LS1 2200cc injectors for Pontiac Firebird Formula Trans-Am 1998-2002
LS1 2200cc injectors for Pontiac Firebird Formula Trans-Am 1998-2002
All wiring harness orders will be shipped after our engineer Nathan confirms the details by email.

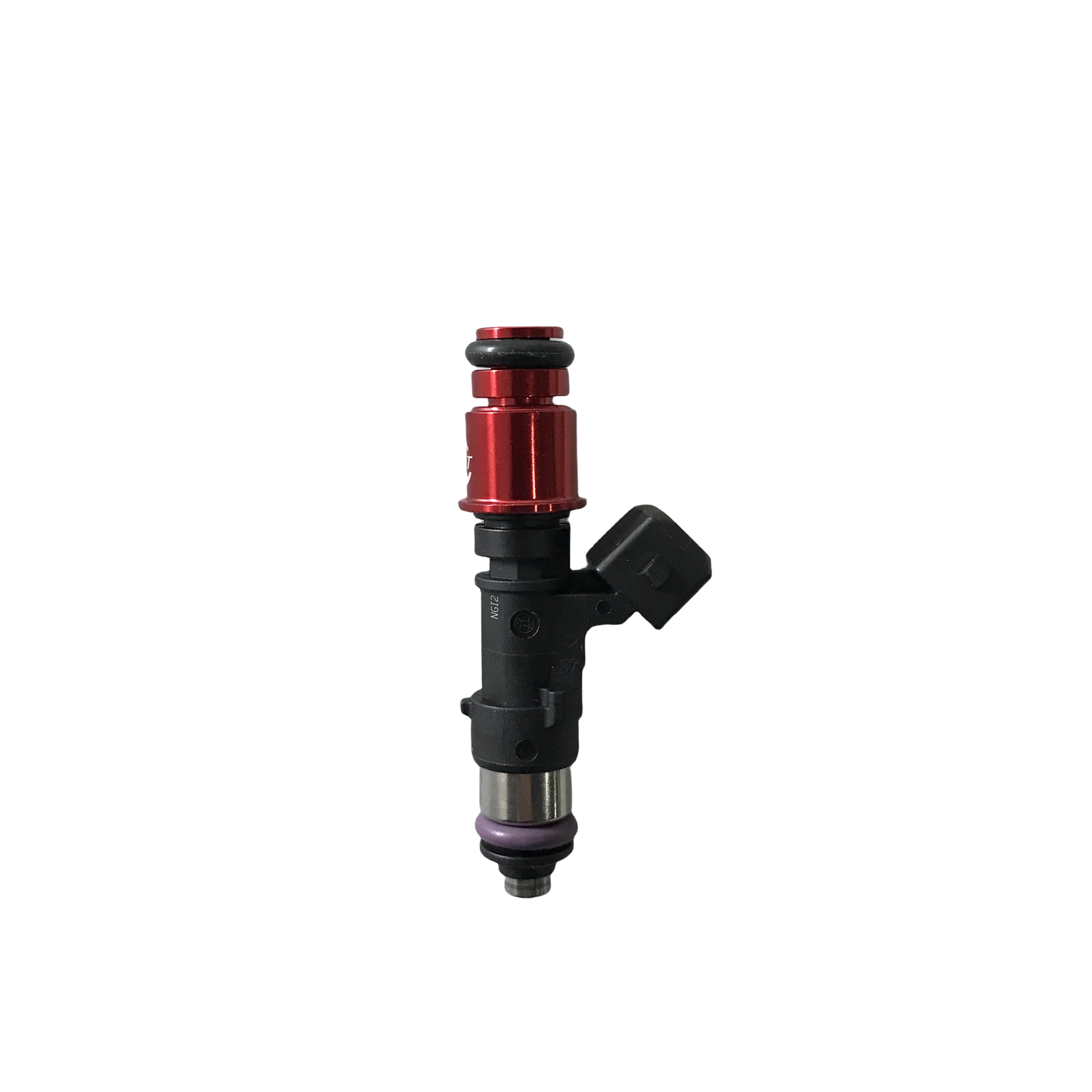

Upgrade your Pontiac Firebird or Trans-Am's fuel system with our Bosch 2200cc injectors. These 210lb injectors are specifically designed for LS1 engines, providing optimal performance for your 1998-2002 Formula or Trans-Am. Experience increased power and efficiency with these top-of-the-line injectors.
WARNING: The fuel rail and fuel system must be cleaned before install the injectors.
Quantity: 8 fuel injectors (1 piece/box)
Overall Length: 77mm
O-ring seat to seat Dimension: 60mm
Top o-ring: 14mm
Bottom o-ring: 14mm
Injector Body Diameter: 15.2mm
O-ring centerline to centerline Dimension: 65mm
Connector: EV1 Minitimer Jetronic ( EV1 to EV6/PNP/OBD2 adapters available)
Static flow rate: 210lb/hr @ 43.5PSI (3BAR) w/Gas 2200cc/min
Dead time: 0.45ms at 14 volts
Coil resistance: 9.1 Ohms / High Impedance
Spray pattern: Conical (30 degree)
Spray angle: Neutral (0 degree)
Acceptable fuels: Gas/Petrol, alcohol/methanol, E85, CNG
Unacceptable fuels: Gas/Petrol containing MTBE, specifically VP Q16 and VP Import or other MTBE oxygenated fuels
Vehicle Compatibility: LS1(5.7L) Gen III 1997–2005
1997-2004 Chevrolet Corvette C5
1998-2002 Pontiac Firebird Formula, Trans Am
1998-2002 Chevrolet Camaro Z28
1998-2002 Chevrolet Camaro SS
2004 Pontiac GTO
2001-2004 HSV GTO
1999-2005 Holden Statesman
2001-2005 Holden Monaro
