Custom LS swap wiring harness

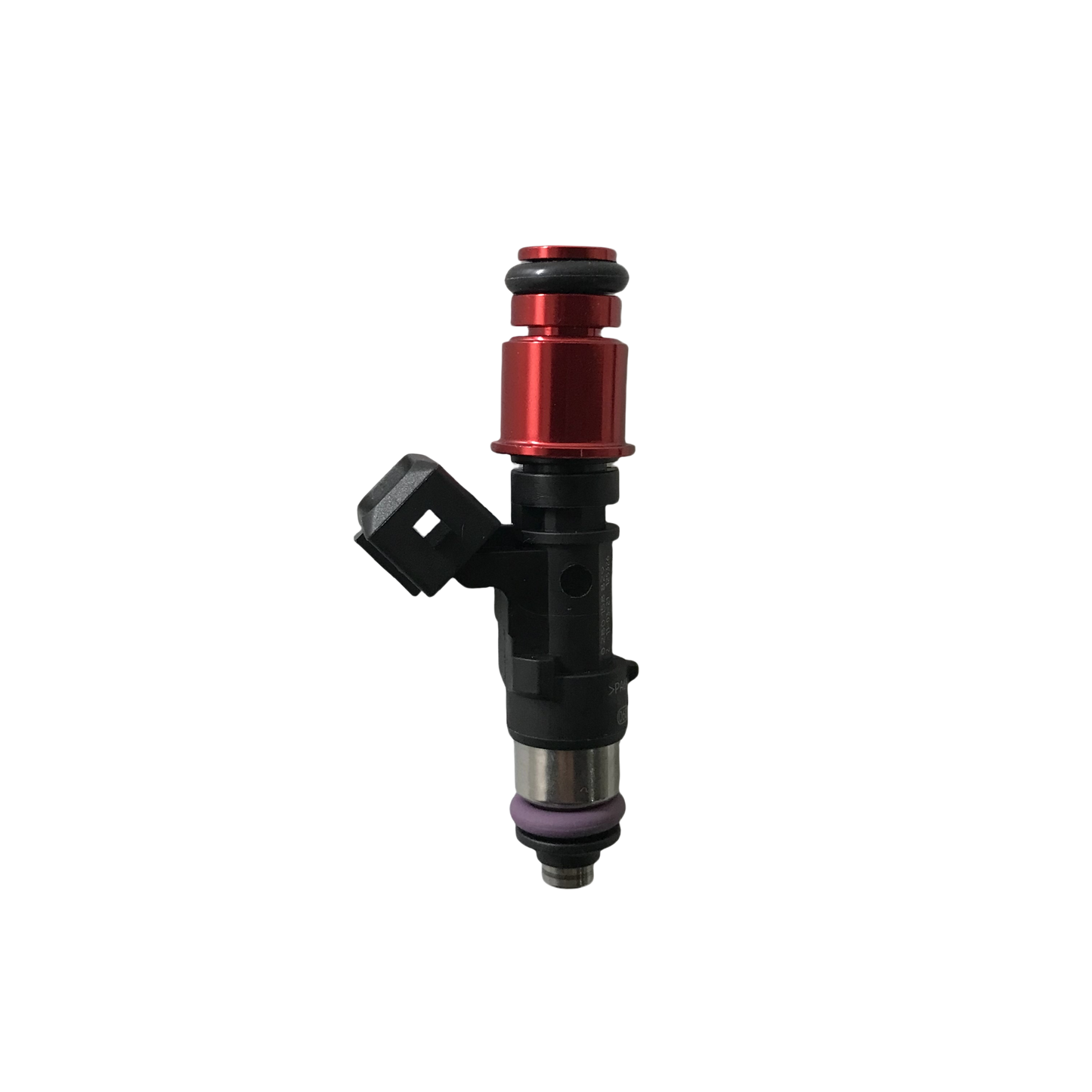

LS1 2200cc injectors 210lb Gen3 5.7L for Holden Monaro 2001-2005

LS1 2200cc injectors 210lb Gen3 5.7L for Holden Monaro 2001-2005

All wiring harness orders will be shipped after our engineer Nathan confirms the details by email.

Regular price $560.00 USD
Regular price $620.00 USD Sale price $560.00 USD
Sale Sold out
Shipping calculated at checkout.

Upgrade your Holden Monaro 2001-2005 with these LS1 2200cc injectors, increasing fuel flow by 210lb for improved engine performance. Designed specifically for the Gen3 5.7L engine, these injectors provide reliable and efficient fuel delivery. Experience increased power and efficiency with these high-quality injectors.

WARNING: The fuel rail and fuel system must be cleaned before install the injectors.

Quantity: 8 fuel injectors (1 piece/box)
Overall Length: 77mm
O-ring seat to seat Dimension: 60mm
Top o-ring: 14mm
Bottom o-ring: 14mm
Injector Body Diameter: 15.2mm
O-ring centerline to centerline Dimension: 65mm
Connector: EV1 Minitimer Jetronic ( EV1 to EV6/PNP/OBD2 adapters available)
Static flow rate: 210lb/hr @ 43.5PSI (3BAR) w/Gas 2200cc/min
Dead time: 0.45ms at 14 volts
Coil resistance: 9.1 Ohms / High Impedance
Spray pattern: Conical (30 degree)
Spray angle: Neutral (0 degree)
Acceptable fuels: Gas/Petrol, alcohol/methanol, E85, CNG
Unacceptable fuels: Gas/Petrol containing MTBE, specifically VP Q16 and VP Import or other MTBE oxygenated fuels

Vehicle Compatibility: LS1(5.7L) Gen III  1997–2005
1997-2004 Chevrolet Corvette C5
1998-2002 Pontiac Firebird Formula, Trans Am
1998-2002 Chevrolet Camaro Z28
1998-2002 Chevrolet Camaro SS
2004 Pontiac GTO
2001-2004 HSV GTO
1999-2005 Holden Statesman
2001-2005 Holden Monaro
