K Series Injectors: Stock Set of 4 Honda K20 / K24 Injectors OBD2 High Impedance
K Series Injectors: Stock Set of 4 Honda K20 / K24 Injectors OBD2 High Impedance
All wiring harness orders will be shipped after our engineer Nathan confirms the details by email.
Couldn't load pickup availability

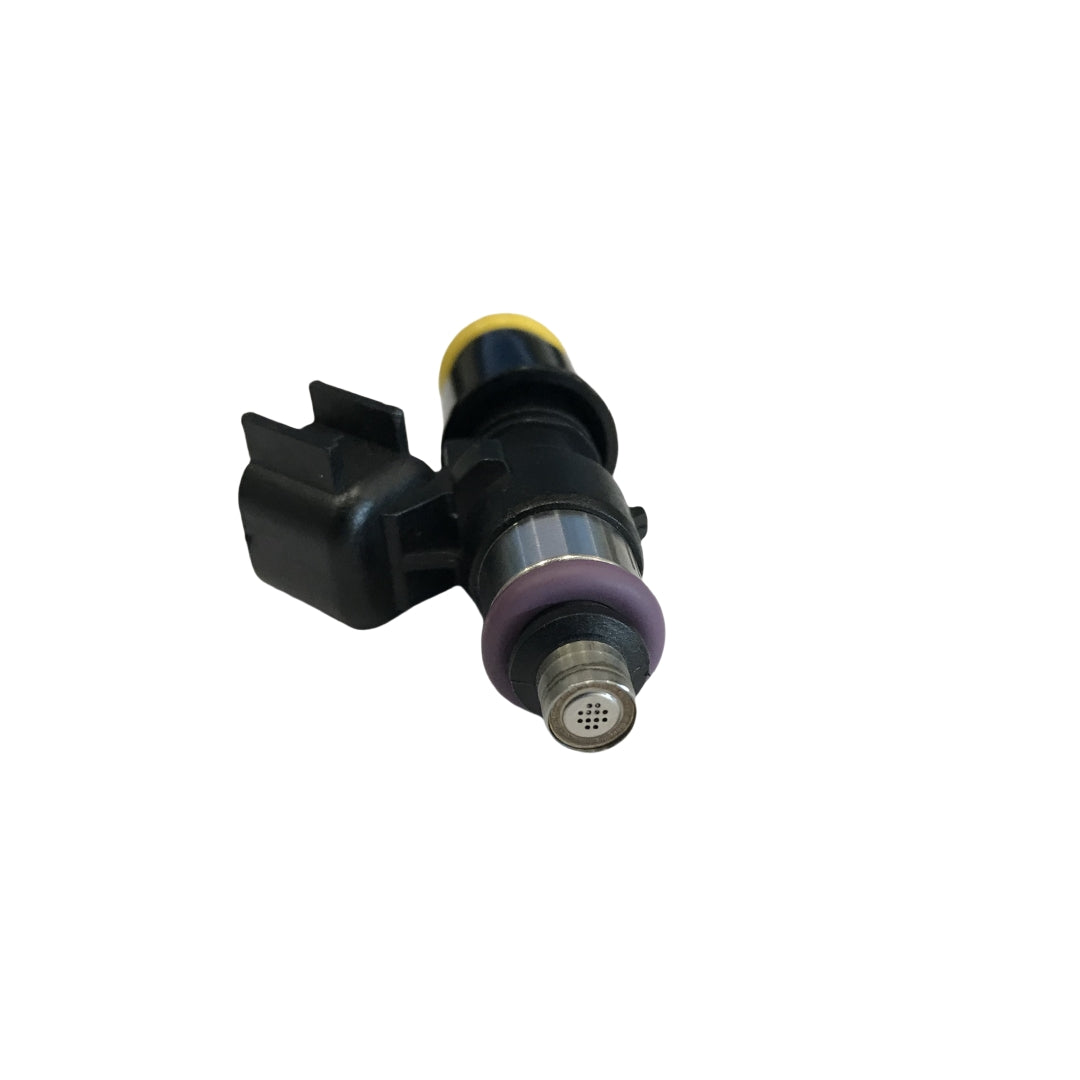

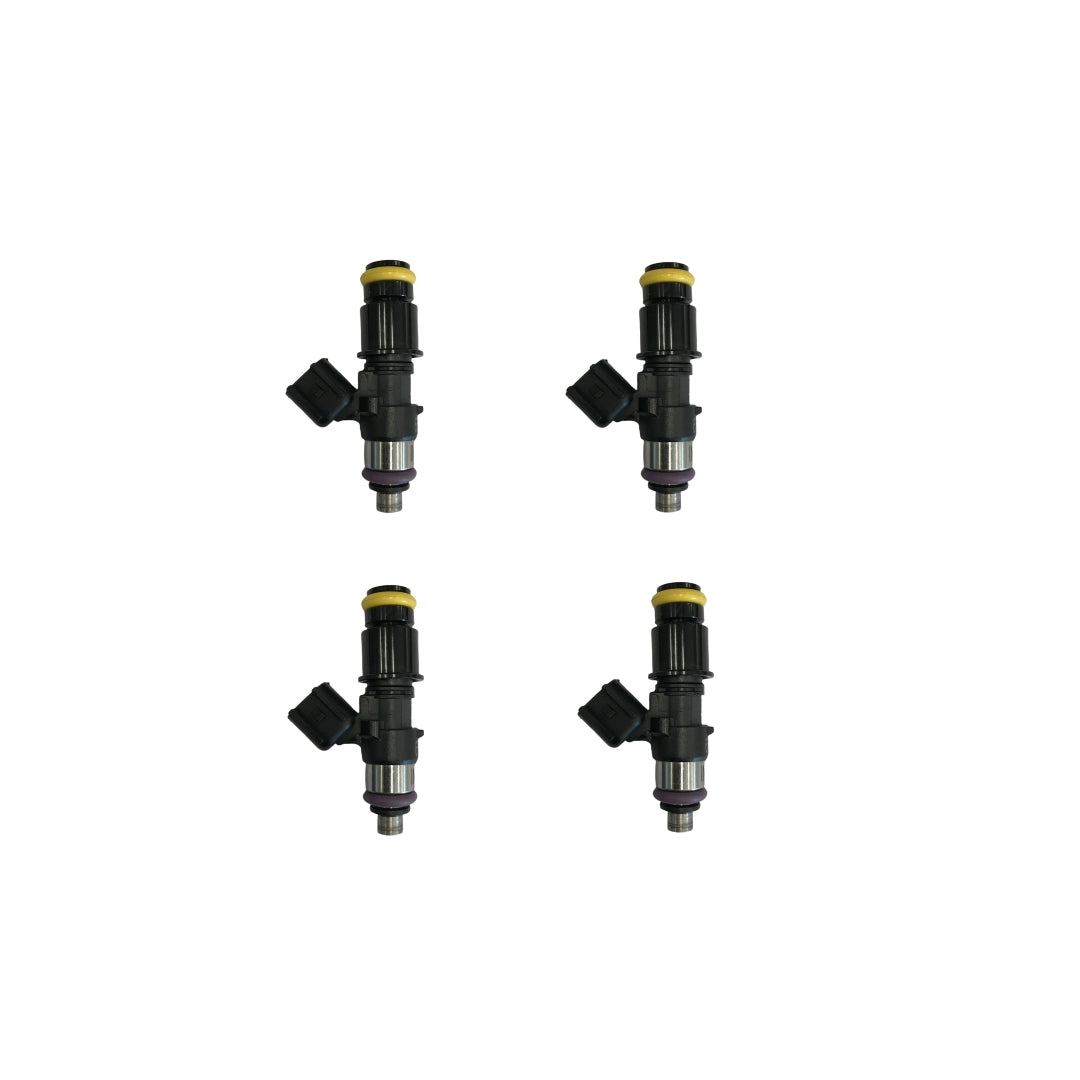

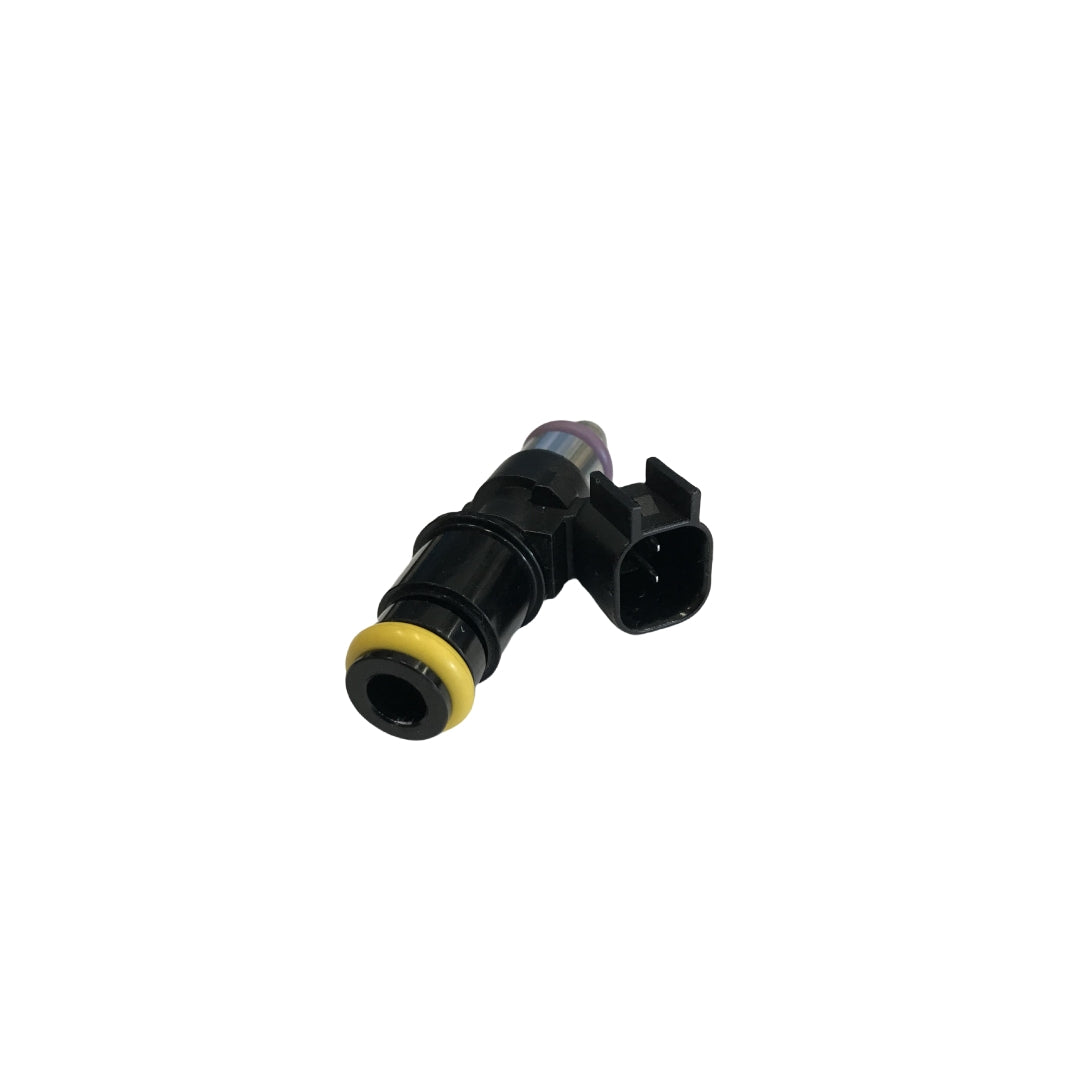

Maximize your engine's performance and power with the precise fuel delivery of our specialized K series injectors. Designed for K series engines, these high impedance injectors will optimize your vehicle's potential, delivering reliable and efficient results. Trust our stock set of 4 injectors to enhance your Honda K20 / K24 engine to its fullest potential.
1. Vehicle Compatibility
- Acura RSX
2002-2006 Acura RSX Base 2.0L K20A3
2002-2004 Acura RSX Type S 2.0L K20A2
2005-2006 Acura RSX Type S 2.0L K20Z1 - Acura TSX
2004-2008 Acura TSX 2.4L K24A2 - Honda Civic
2002-2005 Honda Civic Si 2.0L K20A3
2006-2011 Honda Civic Si 2.0L K20Z3 - Honda S2000
2006-2009 Honda S2000 2.2L F22C1 - Dodge
2008-2009 Dodge Caliber SRT-4 2.4 Turbo
2003-2005 Dodge Neon SRT-4 2.4 Turbo - Nissan
2002-2006 Nissan Sentra SE-R Spec V 2.5 QR25DE
2002-2006 Nissan Altima QR25 QR25DE 2.5L
2. Details
|
Overall length: 65mm |
Top and Bottom o-ring: 14mm |
|
O-ring seat to seat dimension: 48mm |
O-ring centerline to centerline Dimension: 53mm |
|
Condition: brand new |
Test: Leak, flow, pressure, spray |
|
Interior design: metal and composite plastic |
Filter design: basket filter design at inlet |
|
Static flow rate: @43.5PSI ( 300kPa ) 80% duty |
Coil resistance: 9 Ohms high impedance |
|
Gain: 0.12ms/MG |
Offset: 0.055ms |
|
Turn on time: 1.14ms @ 14VDC |
Turn off time: 0.85ms @ 300KPa |
|
Amperage: 1.0 Amps |
Pressure: Min 30PSIG/ Max 100PSIG |
