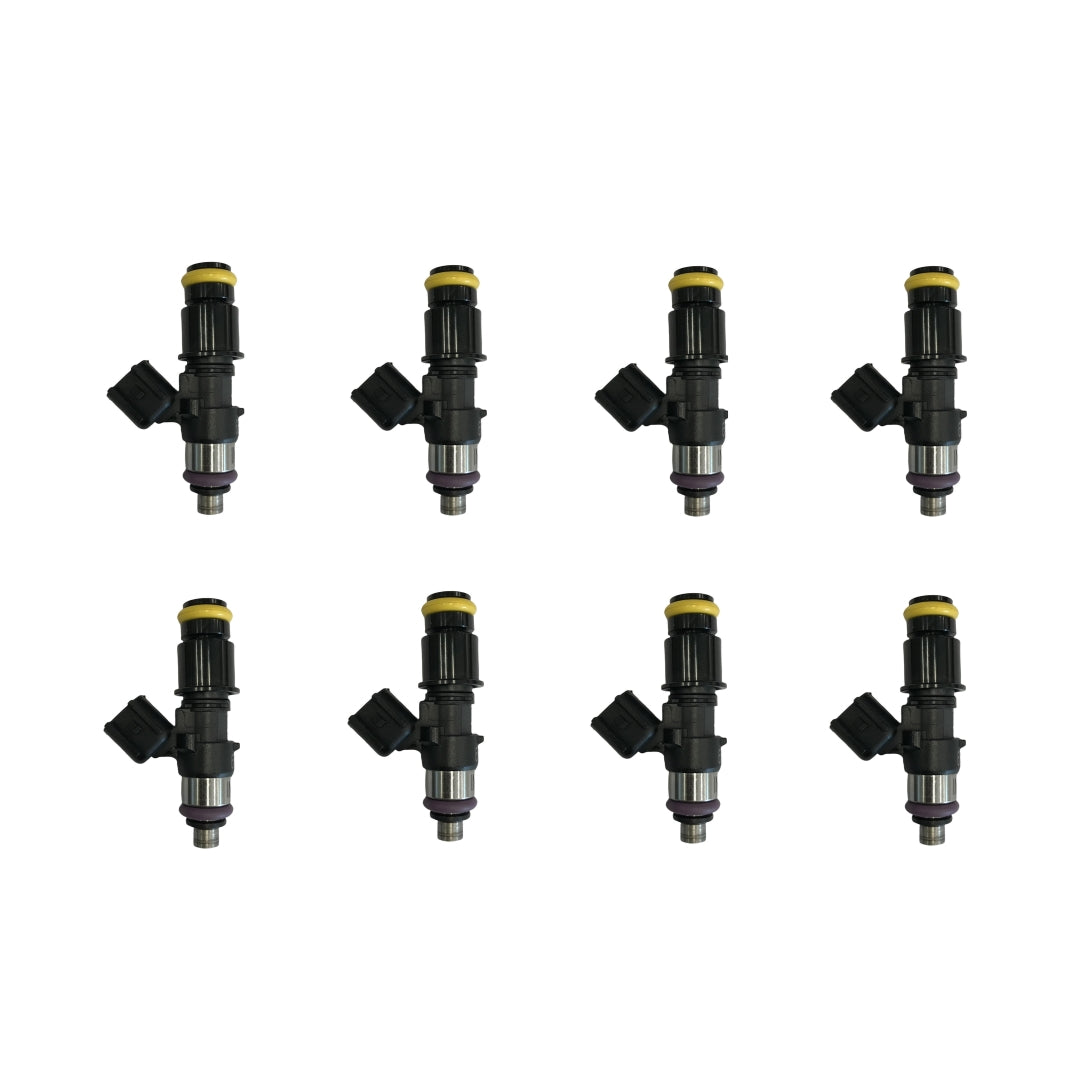

Fuel Injectors: Stock Set of 8 LS2 Injectors EV1 / EV6 High Impedance
Fuel Injectors: Stock Set of 8 LS2 Injectors EV1 / EV6 High Impedance
All wiring harness orders will be shipped after our engineer Nathan confirms the details by email.
Couldn't load pickup availability
Upgrade your fuel system with our set of 8 LS2 EV1 / EV6 high impedance fuel injectors. These high-quality injectors provide precise and efficient fuel delivery, resulting in improved engine performance and increased horsepower. Trust in our expertise and get optimal performance for your vehicle.
1. Vehicle Compatibility
-
LS2 6.0L (Gen IV)
2005-2007 Chevrolet C6 Corvette
2005-2006 Chevrolet SSR
2006–2009 Chevrolet TrailBlazer SS
2006–2007 Cadillac CTS-V Series
2005-2006 Holden Monaro family
2005–2006 Pontiac GTO (peak power at 5200 rpm, peak torque at 4000 rpm)
2005–2006 Vauxhall Monaro VXR
2007–2009 Vauxhall VXR8
2005–2006 HSV Coupe GTO
2005–2006 HSV SV6000
2005–2008 HSV Clubsport R8, Maloo R8, Senator Signature and GTS
2005–2008 HSV Grange
2008–2009 Saab 9-7X Aero
2. Details
|
Overall length: 65mm |
Top and Bottom o-ring: 14mm |
|
O-ring seat to seat dimension: 48mm |
O-ring centerline to centerline Dimension: 53mm |
|
Condition: brand new |
Test: Leak, flow, pressure, spray |
|
Interior design: metal and composite plastic |
Filter design: basket filter design at inlet |
|
Static flow rate: @43.5PSI ( 300kPa ) 80% duty |
Coil resistance: 9 Ohms high impedance |
|
Gain: 0.12ms/MG |
Offset: 0.055ms |
|
Turn on time: 1.14ms @ 14VDC |
Turn off time: 0.85ms @ 300KPa |
|
Amperage: 1.0 Amps |
Pressure: Min 30PSIG/ Max 100PSIG |
