Custom LS swap wiring harness

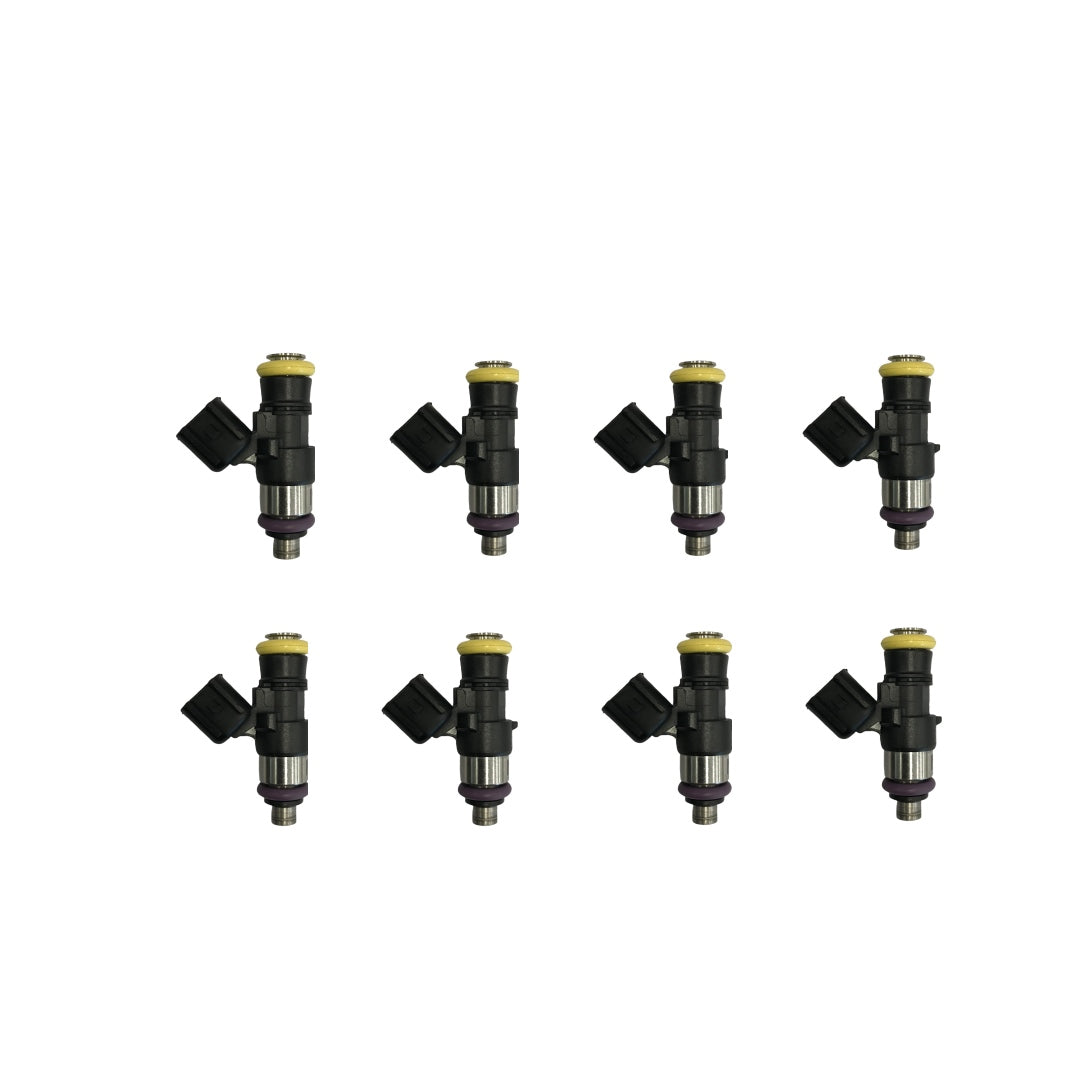

Fuel Injectors: Set of 8 LS3 / LS7 / LSA / LS4 / LS9 / L99 EV6 Style High Impedance Injectors

Fuel Injectors: Set of 8 LS3 / LS7 / LSA / LS4 / LS9 / L99 EV6 Style High Impedance Injectors

All wiring harness orders will be shipped after our engineer Nathan confirms the details by email.

Regular price $269.00 USD
Regular price $336.00 USD Sale price $269.00 USD
Sale Sold out
Shipping calculated at checkout.
Size

Expertly designed for LS3 / LS7 / LSA / LS4 / LS9 / L99 engines, these high impedance LS3 style fuel injectors are specially designed to provide optimal fuel delivery and performance. Benefit from high quality, precise fuel injection that will improve your engine's performance and efficiency.

1. Vehicle Compatibility

  • LS3 6.2L  Gen IV
    2008–2013 Chevrolet Corvette
    2008-2013 Chevrolet Corvette and Corvette Grand Sport
    2008-2013 Chevrolet Corvette w/ Optional Exhaust
    2011 Jensen Interceptor R
    2010–2015 Chevrolet Camaro SS (manual only)
    2009-2015 Chevrolet Camaro SS Coupe and Convertible
    2015-2017 Holden-based SS Sedan
    2008-2010 Pontiac G8 GXP
    2014–2017 Chevrolet SS
    2009–2017 Vauxhall VXR8
    2015 Drakan Spyder
  • LS7 7.0L Gen IV
    2006–2013 Chevrolet Corvette Z06
    2013 Corvette 427 Convertible
    2014-2015 Chevrolet Camaro Z28
  • LS9 6.2L Gen IV
    2009–2013 Chevrolet Corvette ZR1
    2017 HSV GTSR W1
  • LSA 6.2L Gen IV
    2009–2015 Cadillac CTS-V
    2012–2015 Chevrolet Camaro ZL1
    2014–2017 HSV GTS GEN-F
    2013–2017 Vauxhall VXR8 GTS, GTS-R
  • LS4 5.3L Gen IV
    2005–2008 Pontiac Grand Prix GXP
    2006–2009 Chevrolet Impala SS
    2006–2007 Chevrolet Monte Carlo SS
    2008–2009 Buick LaCrosse Super
  • L99 6.2L Gen IV
    2010–2015 Chevrolet Camaro SS  (automatic transmission)

2. Details

Overall length: 49mm

Top and Bottom o-ring: 14mm

O-ring seat to seat dimension: 34mm

O-ring centerline to centerline Dimension: 38mm

Condition: brand new

Test: Leak, flow, pressure, spray

Interior design: metal and composite plastic

Filter design: basket filter design at inlet

Static flow rate: @43.5PSI ( 300kPa ) 80% duty

Coil resistance: 9 Ohms high impedance

Gain: 0.12ms/MG

Offset: 0.055ms

Turn on time: 1.14ms @ 14VDC

Turn off time: 0.85ms @ 300KPa

Amperage: 1.0 Amps

Pressure: Min 30PSIG/ Max 100PSIG
