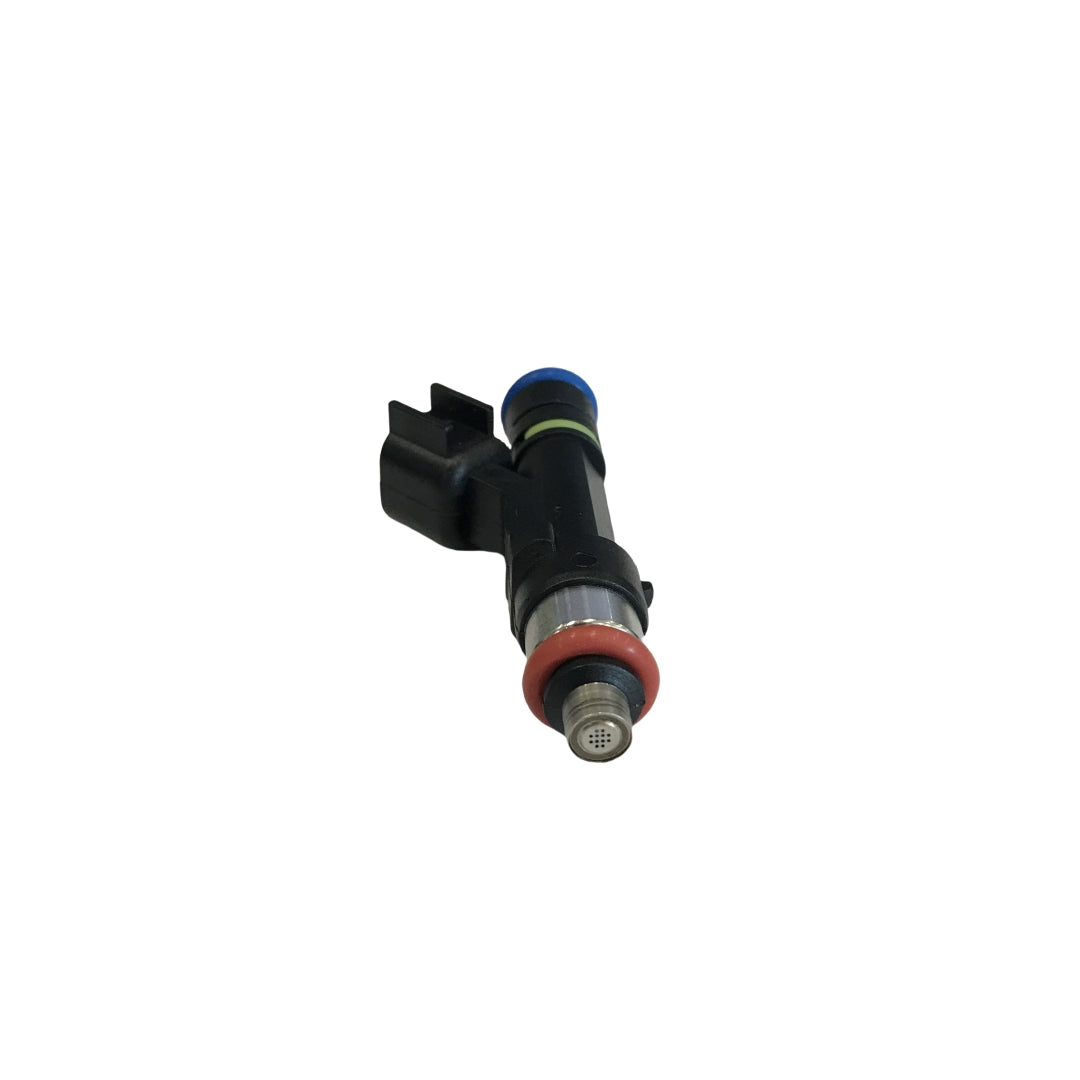

Fuel Injectors: Set of 8 LS1 / LS6 / LT1 Injectors EV1 / EV6 High Impedance

Fuel Injectors: Set of 8 LS1 / LS6 / LT1 Injectors EV1 / EV6 High Impedance

All wiring harness orders will be shipped after our engineer Nathan confirms the details by email.

Regular price $269.00 USD
Regular price $336.00 USD Sale price $269.00 USD
Sale Sold out
Shipping calculated at checkout.
Size

Unleash the full potential of your vehicle's engine with this set of 8 high impedance fuel injectors. Specifically designed for LS1, LS6, and LT1 engines, these injectors have the ability to handle high flow rates and deliver precise fuel distribution. With their advanced technology, you'll experience increased horsepower and eliminate any hesitation. Upgrade your performance with confidence.

1. Vehicle Compatibility

  • LT1 (Gen II)
    1992–1996 Chevrolet Corvette C4 LT1  2200cc
    1993–1997 Chevrolet Camaro Z28, B4C and SS LT1
    1993–1997 Pontiac Firebird Formula, Trans Am, and Firehawk LT1
    1994-1996 Buick Roadmaster
    1994–1996 Chevrolet Caprice
    1994–1996 Chevrolet Caprice Police Package
    1994–1996 Chevrolet Impala SS
    1994–1996 Chevrolet Caprice Wagon
    1994–1996 Cadillac Fleetwood
  • LT4 Gen II
    1996 Chevrolet Corvette only when equipped with 6-speed manual transmission
    1997 Chevrolet Camaro SLP/LT4 SS 6-speed
    1997 Pontiac Firebird SLP/LT4 Firehawk 6-speed
  • LS1 5.7L Gen III
    1997-2004 Chevrolet Corvette C5
    1998-2002 Pontiac Firebird Formula, Trans Am
    1998-2002 Chevrolet Camaro Z28
    1998-2002 Chevrolet Camaro SS
    2004 Pontiac GTO
    2001-2004 HSV GTO
    1999-2005 Holden Statesman
    2001-2005 Holden Monaro
  • LS6 5.7L Gen III
    2001-2004 Chevrolet Corvette C5 Z06
    2004–2005 Cadillac CTS-V Series
    2007–2008 SSC Ultimate Aero TT (modified)

2. Details

Overall length: 77mm

Top and Bottom o-ring: 14mm

O-ring seat to seat dimension: 60mm

O-ring centerline to centerline Dimension: 65mm

Condition: brand new

Test: Leak, flow, pressure, spray

Interior design: metal and composite plastic

Filter design: basket filter design at inlet

Static flow rate: @43.5PSI ( 300kPa ) 80% duty

Coil resistance: 9 Ohms high impedance

Gain: 0.12ms/MG

Offset: 0.055ms

Turn on time: 1.14ms @ 14VDC

Turn off time: 0.85ms @ 300KPa

Amperage: 1.0 Amps

Pressure: Min 30PSIG/ Max 100PSIG
