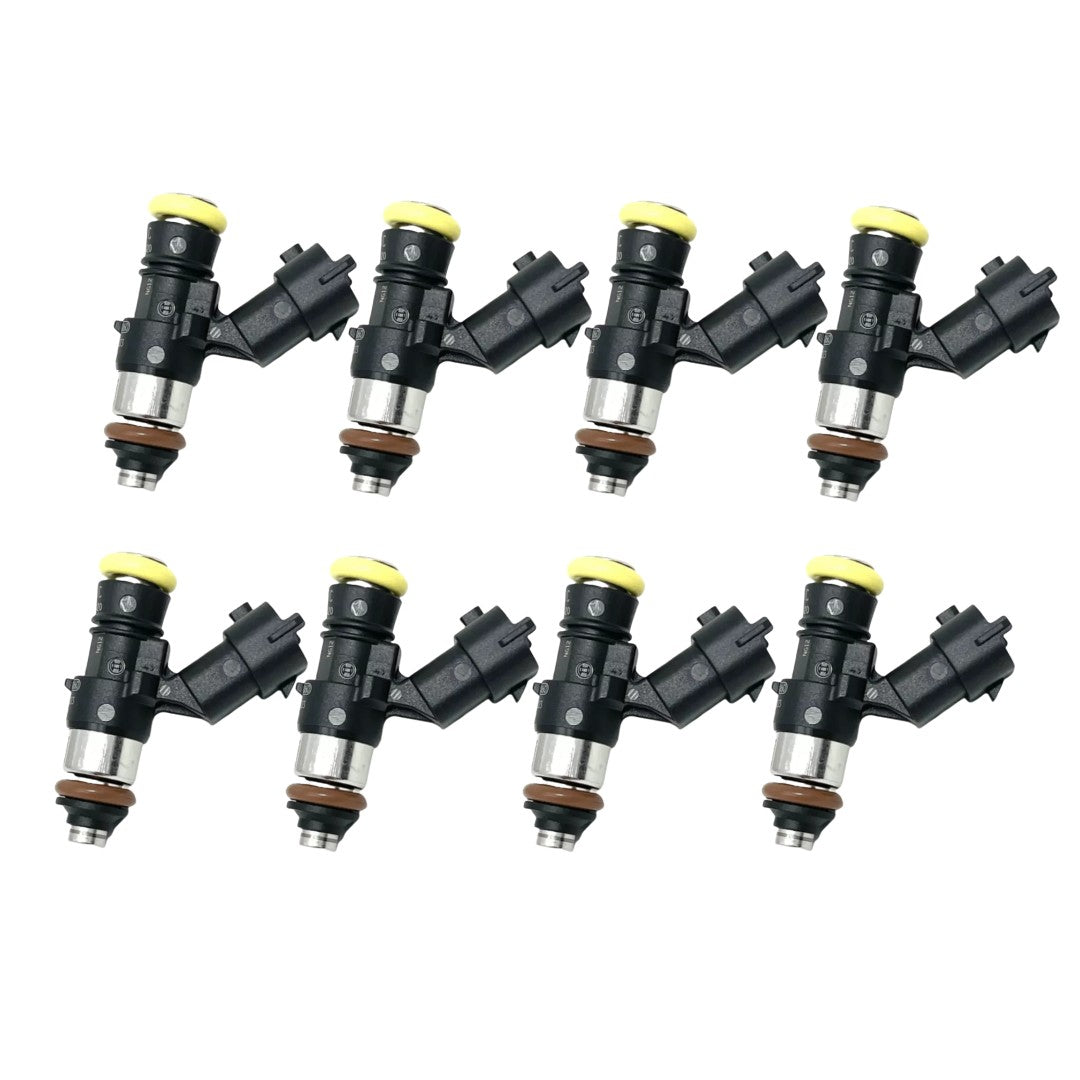

8pcs LSA 2200cc Injectors 210lb Upgrade for Cadillac CTS-V 2009–2015 6.2L V8

8pcs LSA 2200cc Injectors 210lb Upgrade for Cadillac CTS-V 2009–2015 6.2L V8

All wiring harness orders will be shipped after our engineer Nathan confirms the details by email.

$600.00 USD
$690.00 USD $600.00 USD
Sale Sold out
Shipping calculated at checkout.

    Set of 8 high performance genuine new Bosch 210 injectors sold with the retail box in stock. The high impedance 2200cc injectors include 14mm top and bottom o-rings. Direct plug and play for Cadillac CTS-V 2009–2015, Chevrolet Camaro ZL1 2012–2015 with 6.2L V8 supercharged LSA engine.

    Product details:

    WARNING: The fuel lines must be cleaned before replacing the fuel injectors.

    Name: BOSCH NGI-2-K
    Quantity: 8 fuel injectors (1 piece/box)
    Overall Length: 49mm
    O-ring seat to seat Dimension: 34mm
    Top o-ring: 14mm
    Bottom o-ring: 14mm
    Injector Body Diameter: 15.2mm
    O-ring centerline to centerline Dimension: 38mm
    Connector: Bosch (Comes with EV6 / EV1 / OBD2 / Denso PNP connectors)
    Static flow rate: 210lb/hr @ 43.5PSI (3BAR) w/Gas 2200cc/min
    Dead time: 0.45ms at 14 volts
    Coil resistance: 9.1 Ohms / High Impedance
    Spray pattern: Conical (30 degree)
    Spray angle: Neutral (0 degree)
    Acceptable fuels: Gas/Petrol, alcohol/methanol, E85, CNG
    Unacceptable fuels: Gas/Petrol containing MTBE, specifically VP Q16 and VP Import or other MTBE oxygenated fuels
