Custom LS swap wiring harness

8pcs LS9 2200cc Injectors 210lb for Chevrolet Corvette ZR1 2009–2013

8pcs LS9 2200cc Injectors 210lb for Chevrolet Corvette ZR1 2009–2013

All wiring harness orders will be shipped after our engineer Nathan confirms the details by email.

Regular price $600.00 USD
Regular price $690.00 USD Sale price $600.00 USD
Sale Sold out
Shipping calculated at checkout.

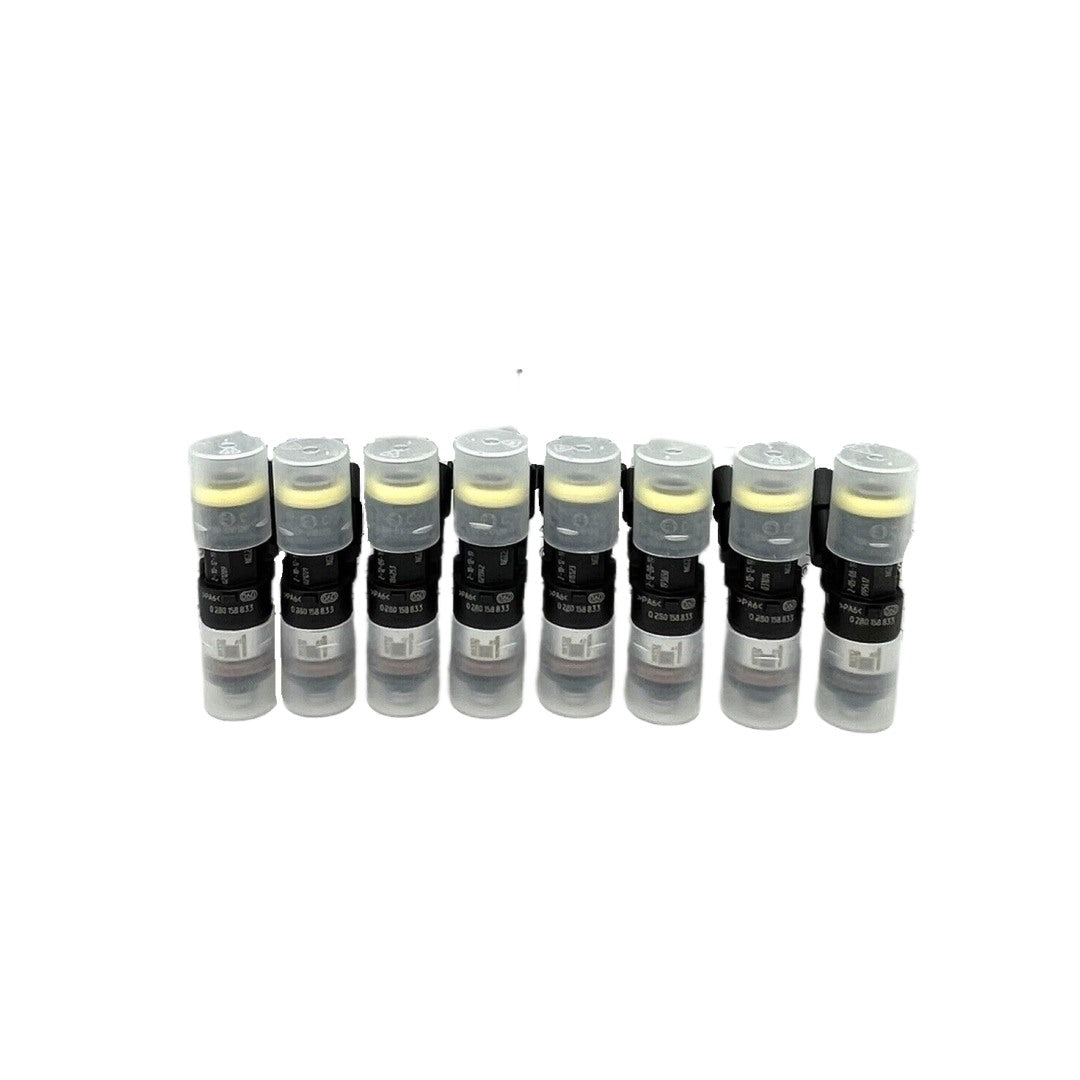

    Set of 8 high performance genuine new Bosch 210 injectors with retail box in stock. The high impedance 2200cc injectors include 14mm top and bottom o-rings. These Bosch 2200cc injectors are suitable for the LS9 engine of the Chevrolet Corvette ZR1 2009–2013.

    Product Detail:

    WARNING: The fuel lines must be cleaned before replacing the fuel injectors.

    Name: BOSCH NGI-2-K
    Quantity: 8 fuel injectors (1 piece/box)
    Overall Length: 49mm
    O-ring seat to seat Dimension: 34mm
    Top o-ring: 14mm
    Bottom o-ring: 14mm
    Injector Body Diameter: 15.2mm
    O-ring centerline to centerline Dimension: 38mm
    Connector: Bosch (Comes with EV6 / EV1 / OBD2 / Denso PNP connectors)
    Static flow rate: 210lb/hr @ 43.5PSI (3BAR) w/Gas 2200cc/min
    Dead time: 0.45ms at 14 volts
    Coil resistance: 9.1 Ohms / High Impedance
    Spray pattern: Conical (30 degree)
    Spray angle: Neutral (0 degree)
    Acceptable fuels: Gas/Petrol, alcohol/methanol, E85, CNG
