8pcs LS7 2200cc Injectors 210lb for Chevrolet Corvette Z06 2006–2013
8pcs LS7 2200cc Injectors 210lb for Chevrolet Corvette Z06 2006–2013
All wiring harness orders will be shipped after our engineer Nathan confirms the details by email.

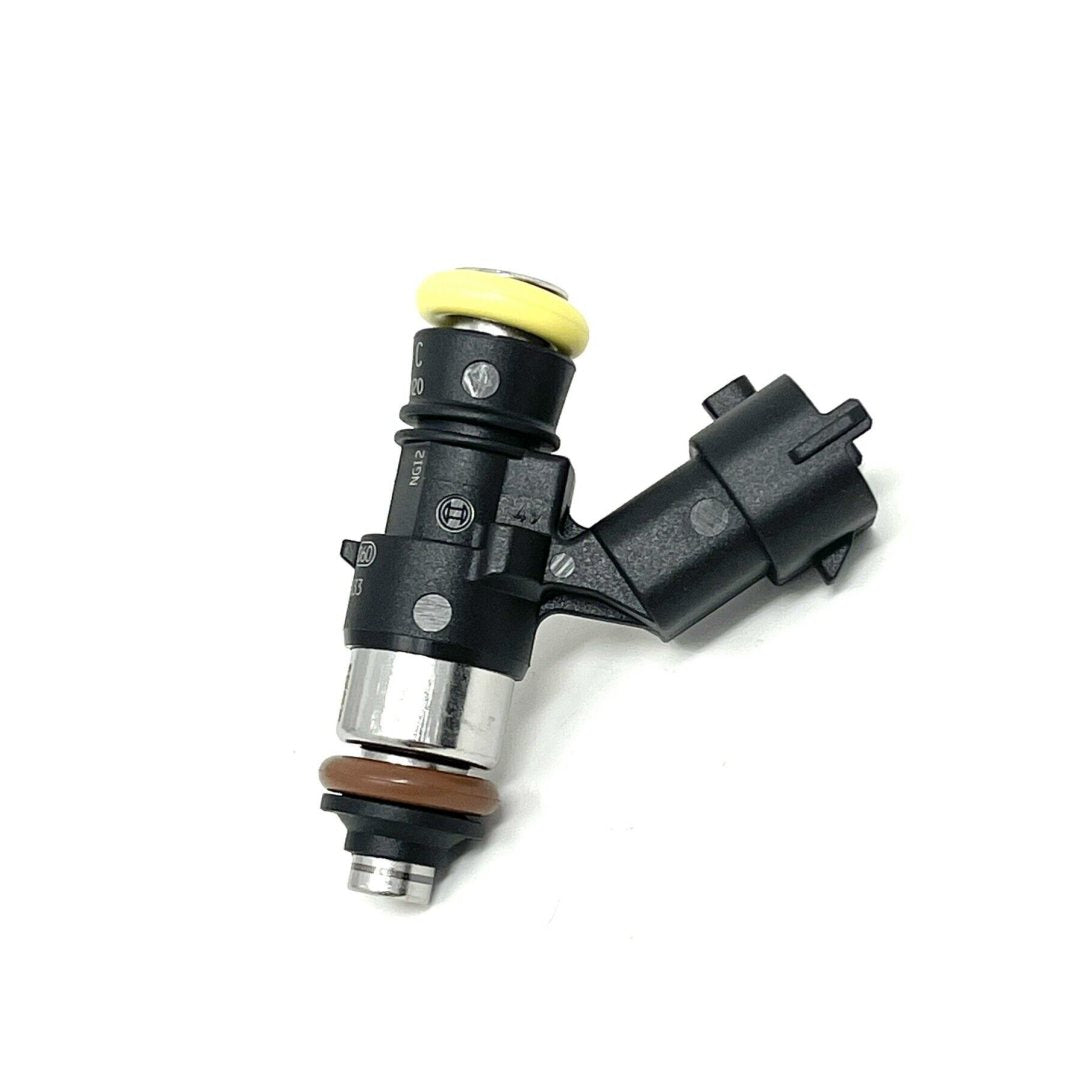

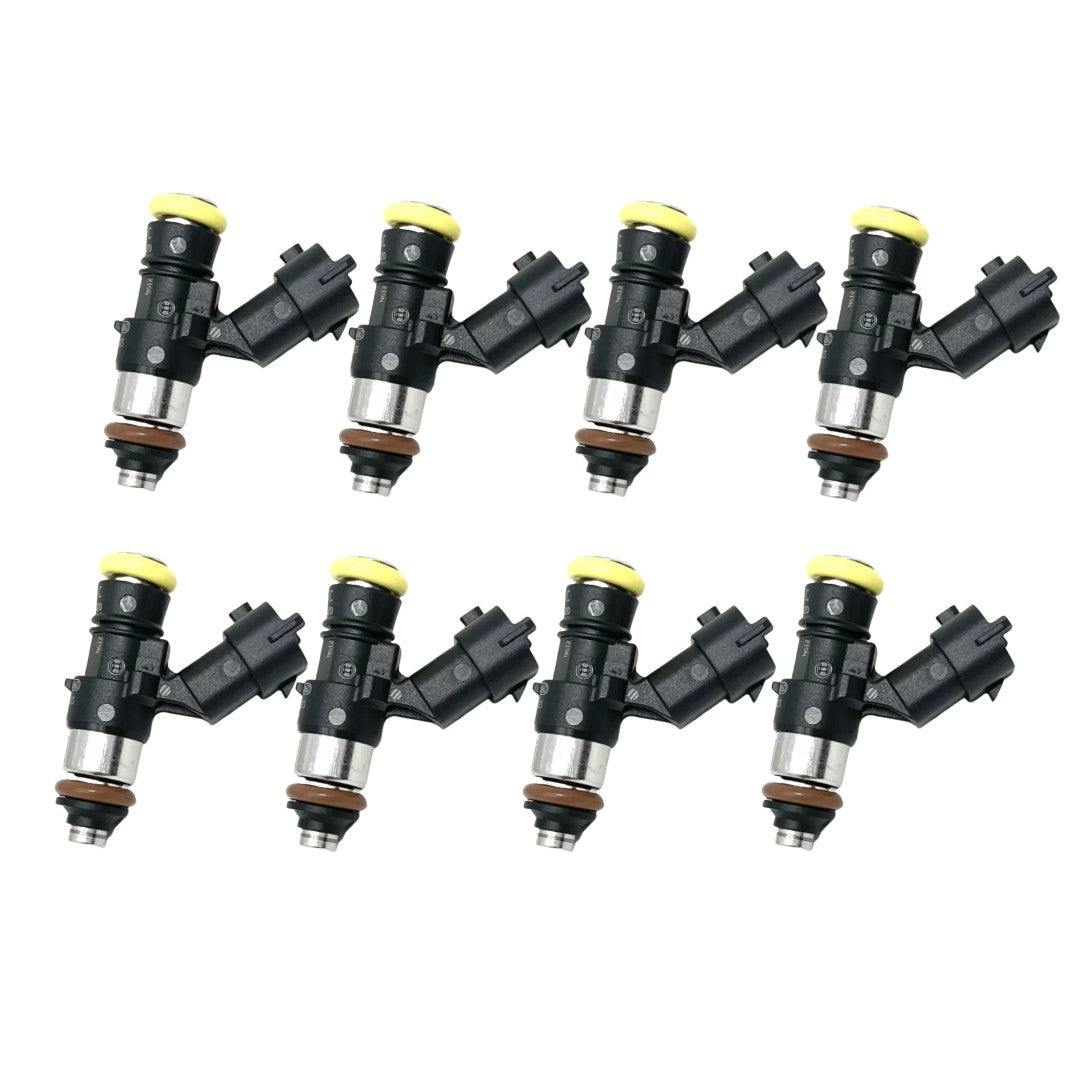

Set of 8 high performance brand new Bosch 210 injectors with retail box in stock. The high impedance 2200cc injectors include 14mm top and bottom o-rings. LS9 fuel injectors designed to seamlessly fit 2006–2013 Chevrolet Corvette Z06, installation is straightforward, and these injectors are ready to be put to use.
Product Detail:
WARNING: The fuel lines must be cleaned before replacing the fuel injectors.
Name: BOSCH NGI-2-K
Quantity: 8 fuel injectors (1 piece/box)
Overall Length: 49mm
O-ring seat to seat Dimension: 34mm
Top o-ring: 14mm
Bottom o-ring: 14mm
Injector Body Diameter: 15.2mm
O-ring centerline to centerline Dimension: 38mm
Connector: Bosch (Comes with EV6 / EV1 / OBD2 / Denso PNP connectors)
Static flow rate: 210lb/hr @ 43.5PSI (3BAR) w/Gas 2200cc/min
Dead time: 0.45ms at 14 volts
Coil resistance: 9.1 Ohms / High Impedance
Spray pattern: Conical (30 degree)
Spray angle: Neutral (0 degree)
Acceptable fuels: Gas/Petrol, alcohol/methanol, E85, CNG
LS7 engine:
2006–2013 Chevrolet Corvette Z06
2013 Corvette 427 Convertible
2014-2015 Chevrolet Camaro Z28
