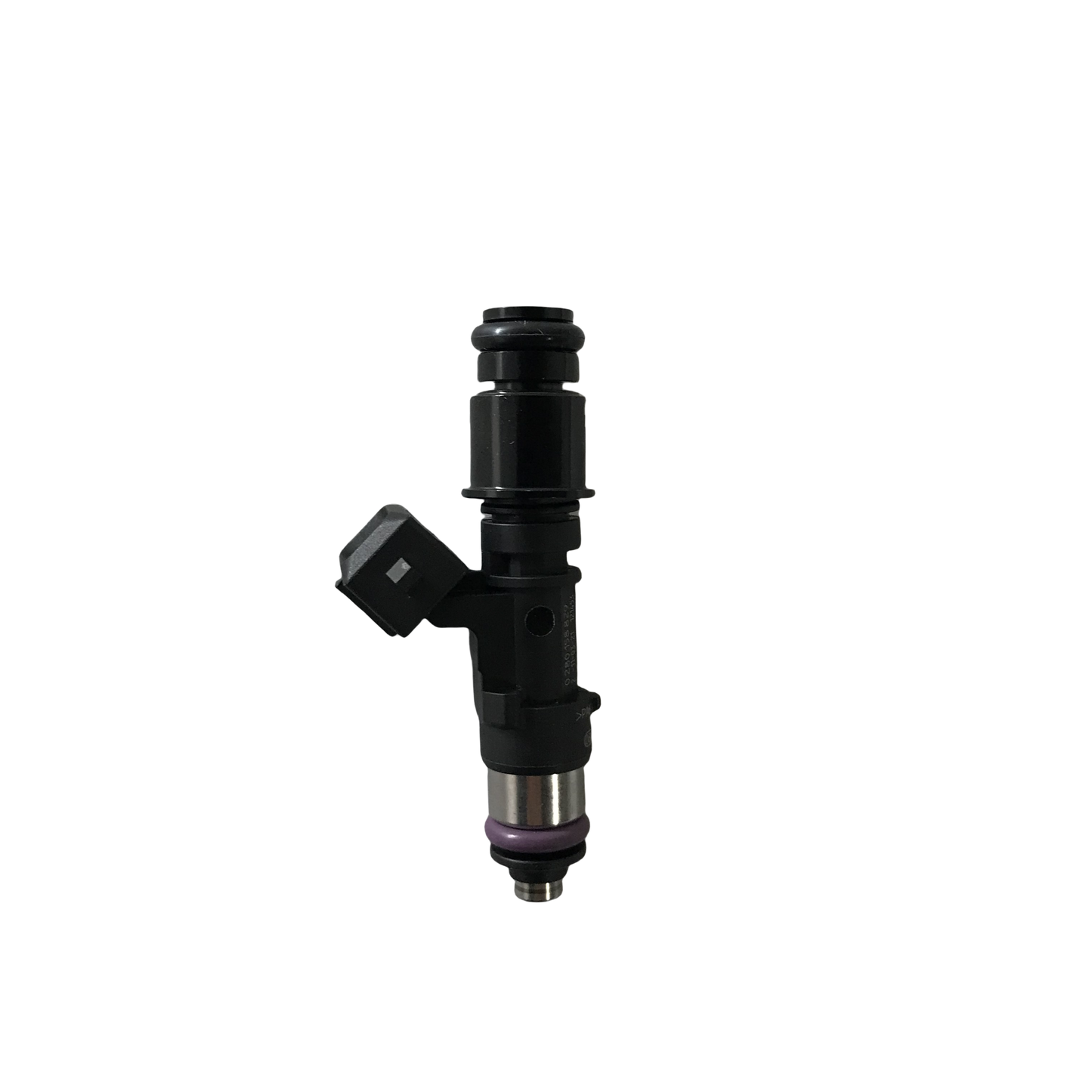

8pcs LS6 2200cc Injectors 210lb for 2004–2005 Cadillac CTS-V Series

Increase the power of your 2004-2005 Cadillac CTS-V Series with this set of 8 LS6 2200cc Injectors. With a flow rate of 210lb, these injectors will provide a significant boost to your vehicle's performance. Upgrade your engine and experience improved acceleration and horsepower.

WARNING: The fuel rail and fuel system must be cleaned before install the injectors.

Quantity: 8 fuel injectors (1 piece/box)
Overall Length: 77mm
O-ring seat to seat Dimension: 60mm
Top o-ring: 14mm
Bottom o-ring: 14mm
Injector Body Diameter: 15.2mm
O-ring centerline to centerline Dimension: 65mm
Connector: EV1 Minitimer Jetronic ( EV1 to EV6/PNP/OBD2 adapters available)
Static flow rate: 210lb/hr @ 43.5PSI (3BAR) w/Gas 2200cc/min
Dead time: 0.45ms at 14 volts
Coil resistance: 9.1 Ohms / High Impedance
Spray pattern: Conical (30 degree)
Spray angle: Neutral (0 degree)
Acceptable fuels: Gas/Petrol, alcohol/methanol, E85, CNG
Unacceptable fuels: Gas/Petrol containing MTBE, specifically VP Q16 and VP Import or other MTBE oxygenated fuels

Vehicle Compatibility: LS6 (5.7L) Gen III
2001-2004 Chevrolet Corvette C5 Z06
2004–2005 Cadillac CTS-V Series
2007–2008 SSC Ultimate Aero TT (modified)
