8pcs Delphi Injectors LQ4/LQ9/LM7 4.8/5.3/6.0 GM Chevrolet Cadillac GMC Multec
8pcs Delphi Injectors LQ4/LQ9/LM7 4.8/5.3/6.0 GM Chevrolet Cadillac GMC Multec
All wiring harness orders will be shipped after confirming the details with the customer.
Couldn't load pickup availability
- FREE SHIPPING! Ship within 1~2 business days;
- E85 Available;
- Connector: multec;
- Flow Matched within 1%;
- Datasheet Comes with Injectors;
- Lifetime Warranty;

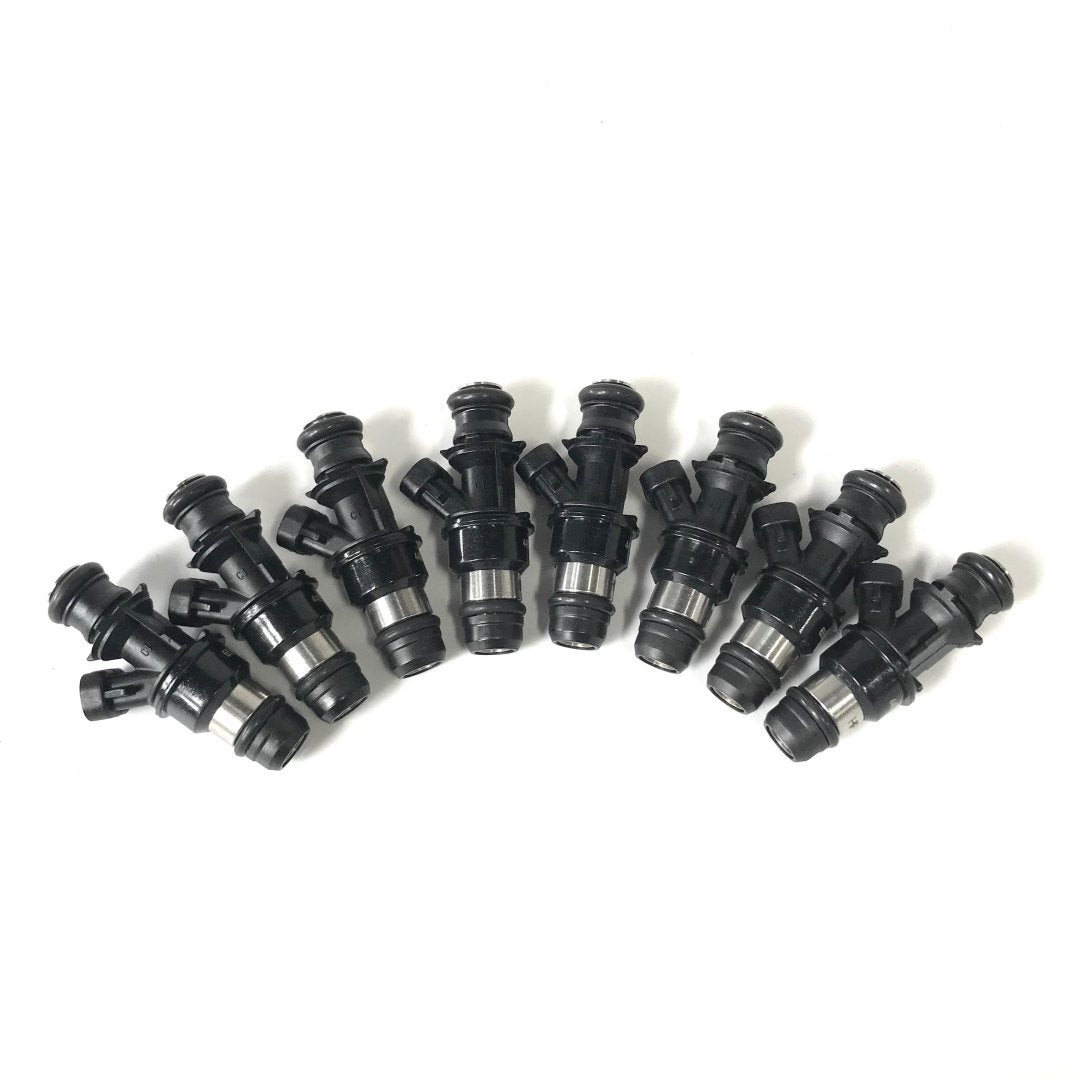

Complete set of 8 Multec fuel injectors featuring 14mm top and bottom O-rings, plugs, and pins. Engineered for direct installation on LQ4 and LQ9 engines without modifications. Compatible with multiple GM vehicles including 2002-2006 Cadillac Escalade, 2003-2007 Chevrolet Silverado SS, 2002-2007 GMC Sierra Denali, 2000-2006 Chevrolet Suburban 2500, and GMC Yukon XL 2500.
Product Parameters:
|
Overall length: 59mm |
Orings (top and bottom): 14mm |
|
O-ring to O-ring: 47mm |
O-ring seat to seat dimension: 43mm |
|
Condition: 100% brand new |
Test: Leak, flow, pressure, spray |
|
Interior design: Stainless steel and composite plastic |
Filter design: Basket filter design at inlet |
|
Static flow rate: @43.5PSI ( 300kPa ) 80% duty |
Coil resistance: 9 Ohms high impedance |
|
Gain: 0.12ms/MG |
Offset: 0.055ms |
|
Turn on time: 1.14ms @ 14VDC |
Turn off time: 0.85ms @ 300KPa |
|
Amperage: 1.0 Amps |
Pressure: Min 30PSIG/ Max 100PSIG |
|
Includes: plastic packaging box, injectors, o-rings, datasheet, multec to ev6/ev1 connectors ( plug and play). |
|
Vehicle Compatibility
LQ9 6.0L (Gen III):
2002–2006 Cadillac Escalade AWD
2005–2006 Cadillac Escalade 2WD
2002–2006 Cadillac Escalade EXT
2003–2006 Cadillac Escalade ESV
2003–2007 Chevrolet Silverado SS
2004–2006 Chevrolet Silverado / GMC Sierra Vortec HO Edition, Silverado/Sierra Performance Edition
2005-2006 GMC Sierra Denali pickup and Yukon Denali
2007 Classic Chevrolet Silverado and GMC Sierra VortecMAX & Silverado/Sierra Performance Edition
LQ4 6.0L (Gen III):
1999–2007 Chevrolet Silverado / GMC Sierra 1500HD / 2500 / 2500HD / 3500
2001 GMC Sierra C3
2002–2007 GMC Sierra Denali
2000–2006 Chevrolet Suburban 2500 / GMC Yukon XL 2500
2002–2007 Hummer H2
2002–2006 GMC Yukon / Yukon XL Denali / Chevrolet Suburban 1500 LTZ
2003–2007 Chevrolet Express / GMC Savana 2500/3500
2003–2008 Chevrolet W-Series / GMC W-Series / Isuzu NPR
LM7 5.3L (Gen III) 1999–2007
2002–2005 Cadillac Escalade 2WD
2002–2006 Chevrolet Avalanche 1500
2003–2007 Chevrolet Express / GMC Savana 1500/2500
1999–2007 Chevrolet Silverado / GMC Sierra 1500
1999–2000 GMC Sierra 2500
2000–2006 Chevrolet Suburban / GMC Yukon XL 1500
2000–2006 Chevrolet Tahoe / GMC Yukon
LR4 4.8L (GEN III) 1999–2007
2003–2007 Chevrolet Express / GMC Savana 2500/3500
1999–2006 (2007 Classic) Chevrolet Silverado / GMC Sierra 1500
2000–2006 Chevrolet Tahoe / GMC Yukon
L59 5.3L (Gen III) 2002–2007
2005–2006 Chevrolet Avalanche 1500
2002–2006 Chevrolet Tahoe / GMC Yukon
2002–2006 Chevrolet Suburban / GMC Yukon XL 1500
2002–2007 GMC Sierra 1500 / Chevrolet Silverado 1500
