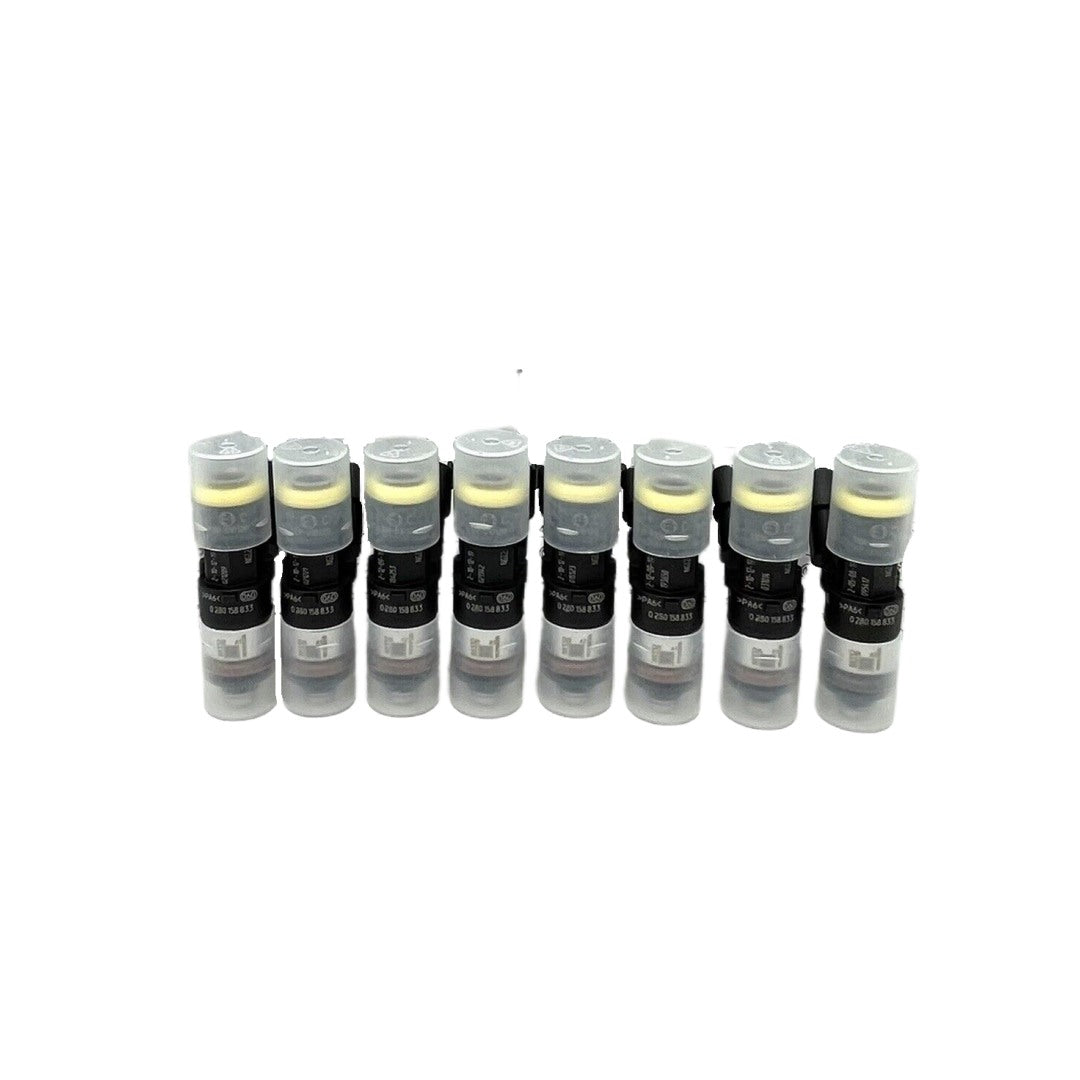

8pcs 2200cc L99 Injectors 210lb for 2010–2015 Chevrolet Camaro SS Stock
8pcs 2200cc L99 Injectors 210lb for 2010–2015 Chevrolet Camaro SS Stock
All wiring harness orders will be shipped after our engineer Nathan confirms the details by email.
Set of 8 high performance stock brand new Bosch 210 injectors sold with the retail box. The high impedance Bosch 2200cc injectors include 14mm top and bottom o-rings, plugs and pins. Direct plug and play for 2010–2015 Chevrolet Camaro SS automatic transmission with L99 engine.
Product Detail:
The fuel lines must be cleaned before replacing the fuel injectors.
Name: BOSCH NGI-2-K
Quantity: 8 fuel injectors (1 piece/box)
Overall Length: 49mm
O-ring seat to seat Dimension: 34mm
Top o-ring: 14mm
Bottom o-ring: 14mm
Injector Body Diameter: 15.2mm
O-ring centerline to centerline Dimension: 38mm
Connector: Bosch (Comes with EV6 / EV1 / OBD2 / Denso PNP connectors)
Static flow rate: 210lb/hr @ 43.5PSI (3BAR) w/Gas 2200cc/min
Dead time: 0.45ms at 14 volts
Coil resistance: 9.1 Ohms / High Impedance
Spray pattern: Conical (30 degree)
Spray angle: Neutral (0 degree)
Acceptable fuels: Gas/Petrol, alcohol/methanol, E85, CNG
