8pcs 2200cc Fuel Injectors 210lb for Gen2 LT1 Gen3 LS1 LS6 5.7L Engine E85
8pcs 2200cc Fuel Injectors 210lb for Gen2 LT1 Gen3 LS1 LS6 5.7L Engine E85
All wiring harness orders will be shipped after our engineer Nathan confirms the details by email.
Couldn't load pickup availability

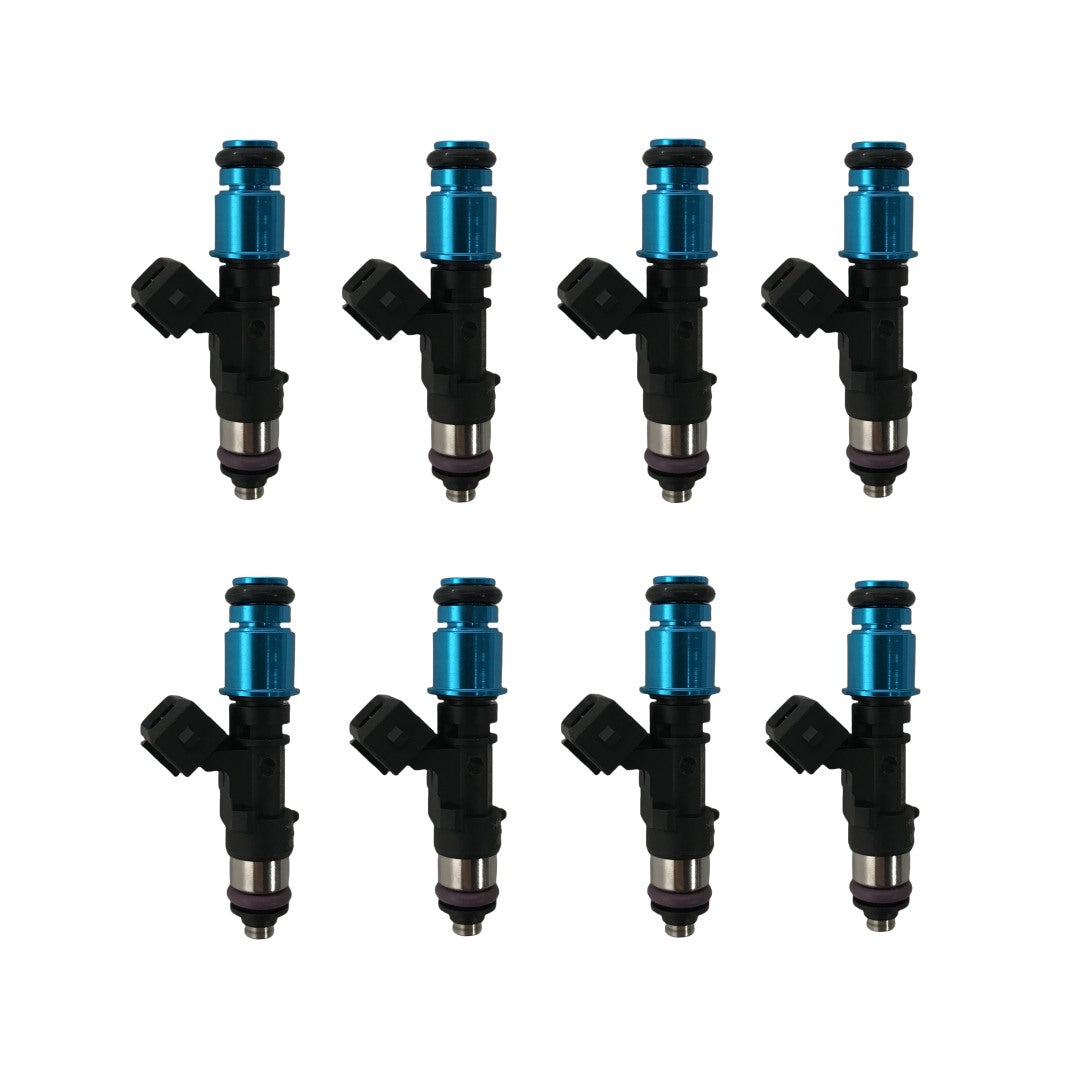

This set of 8 genuine Bosch 210 fuel injectors is sold with the retail box and is specifically designed for high performance. The injectors have a high impedance rating of 2200cc and come with 14mm adapter tops and 14mm bottom o-rings. They are a direct plug and play option for engines such as LS1, LT1, and LS6.
WARNING: The fuel rail and fuel system must be cleaned before install the injectors.
Quantity: 8 fuel injectors (1 piece/box)
Overall Length: 77mm
O-ring seat to seat Dimension: 60mm
Top o-ring: 14mm
Bottom o-ring: 14mm
Injector Body Diameter: 15.2mm
O-ring centerline to centerline Dimension: 65mm
Connector: EV1 Minitimer Jetronic ( EV1 to EV6/PNP/OBD2 adapters available)
Static flow rate: 210lb/hr @ 43.5PSI (3BAR) w/Gas 2200cc/min
Dead time: 0.45ms at 14 volts
Coil resistance: 9.1 Ohms / High Impedance
Spray pattern: Conical (30 degree)
Spray angle: Neutral (0 degree)
Acceptable fuels: Gas/Petrol, alcohol/methanol, E85, CNG
Unacceptable fuels: Gas/Petrol containing MTBE, specifically VP Q16 and VP Import or other MTBE oxygenated fuels
Vehicle Compatibility:
