5pcs E85 210lb Injectors 2200cc for Audi RS3 8V 8V.5 TTRS 8S 2017+ Stock
5pcs E85 210lb Injectors 2200cc for Audi RS3 8V 8V.5 TTRS 8S 2017+ Stock
All wiring harness orders will be shipped after our engineer Nathan confirms the details by email.

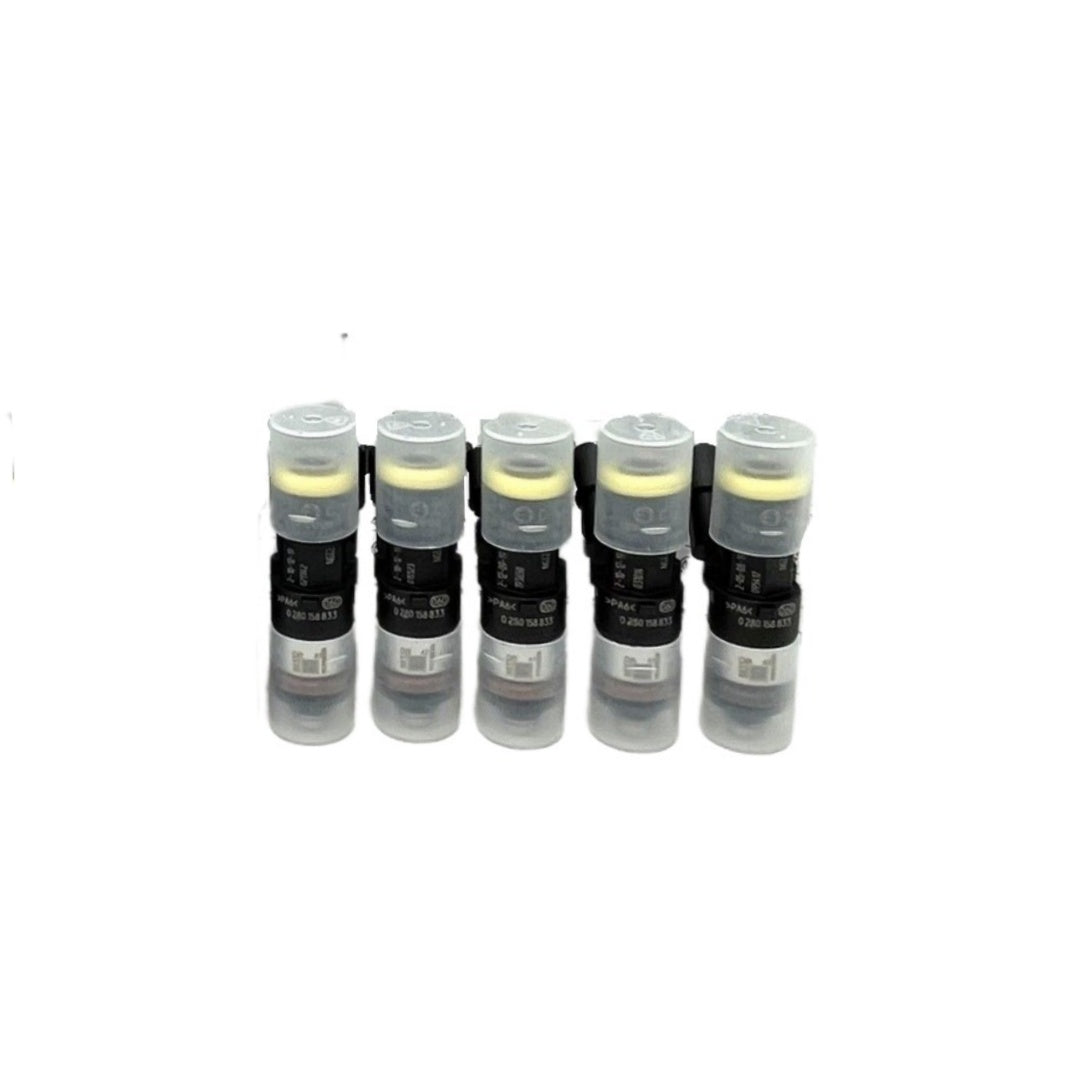

Set of 5 Bosch 2200cc injectors are in stock with free shipping, include 14mm top and bottom o-rings, plugs and pins. Direct plug and play for the Audi RS3 8V, 8V.5, TTRS 8S. Each new 210lb injector is sold with the retail box. Acceptable fuels are Gas/Petrol, alcohol/methanol, E85, CNG.
Product Details:
*WARNING: The fuel lines must be cleaned before replacing the fuel injectors.
Name: BOSCH NGI-2-K
Quantity: 5 fuel injectors (1 piece/box)
Overall Length: 49mm
O-ring seat to seat Dimension: 34mm
Top o-ring: 14mm
Bottom o-ring: 14mm
Injector Body Diameter: 15.2mm
O-ring centerline to centerline Dimension: 38mm
Connector: Bosch (Comes with EV6/EV1/OBD2/Denso adapters)
Static flow rate: 210lb/hr @ 43.5PSI (3BAR) w/Gas 2200cc/min
Dead time: 0.45ms at 14 volts
Coil resistance: 9.1 Ohms / High Impedance
Spray pattern: Conical (30 degree)
Spray angle: Neutral (0 degree)
Acceptable fuels: Gas/Petrol, alcohol/methanol, E85, CNG
Unacceptable fuels: Gas/Petrol containing MTBE, specifically VP Q16 and VP Import or other MTBE oxygenated fuels
