4pcs 210lb Injectors 2200cc for 2002-2006 Nissan Sentra SE-R Spec V 2.5 QR25DE
4pcs 210lb Injectors 2200cc for 2002-2006 Nissan Sentra SE-R Spec V 2.5 QR25DE
All wiring harness orders will be shipped after our engineer Nathan confirms the details by email.

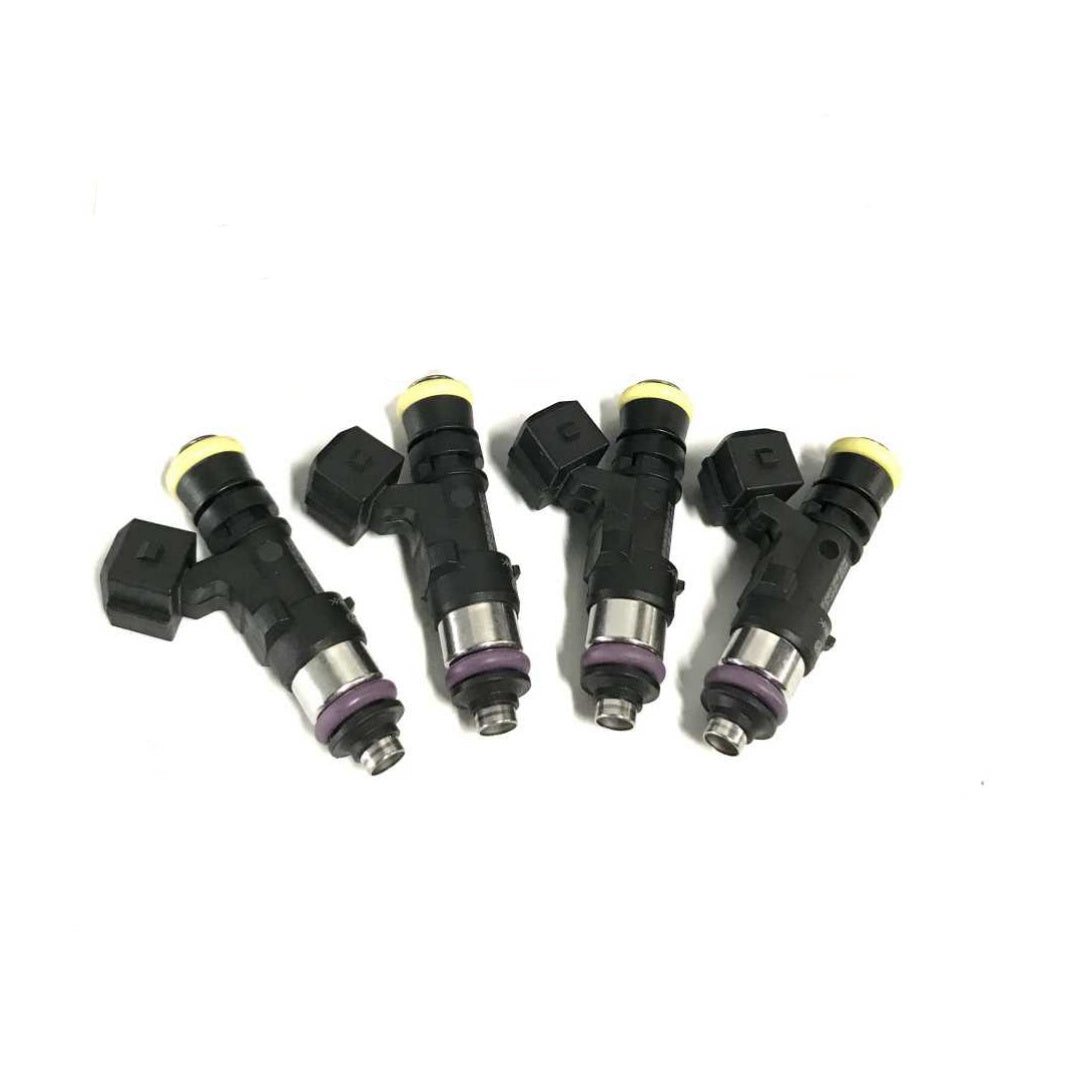

Upgrade your engine with this set of 4 Bosch 210lb injectors 0280158829, providing 2200cc of fuel for your 2002-2006 Nissan Sentra SE-R Spec V 2.5 QR25DE. With 14mm top and bottom o-rings and compatible with e85, these injectors require a 14mm top feed fuel rail conversion for optimal performance.
*Genuine reliable and new Bosch injectors sold with the retail box.
Product Parameters:
Name: 2200cc NGI2
Part number: 0280158829
Package: 4 fuel injectors (1 piece/box)
Overall Length: 65mm
O-ring seat to seat Dimension: 48mm
Top o-ring: 14mm
Bottom o-ring: 14mm
Injector Body Diameter: 15.2mm
O-ring centerline to centerline Dimension: 53mm
Connector: EV1 Minitimer Jetronic ( EV1 to EV6/PNP/OBD2 adapters available)
Static flow rate: 210lb/hr @ 43.5PSI (3BAR) w/Gas 2200cc/min
Dead time: 0.45ms at 14 volts
Coil resistance: 9.1 Ohms / High Impedance
Spray pattern: Conical (30 degree)
Spray angle: Neutral (0 degree)
Acceptable fuels: Gas/Petrol, alcohol/methanol, E85, CNG
Unacceptable fuels: Gas/Petrol containing MTBE, specifically VP Q16 and VP Import or other MTBE oxygenated fuels
