4pcs 210lb Injectors 2200cc for 1989-1998 Nissan 240SX 2.4 KA24E KA24DE
4pcs 210lb Injectors 2200cc for 1989-1998 Nissan 240SX 2.4 KA24E KA24DE
All wiring harness orders will be shipped after our engineer Nathan confirms the details by email.

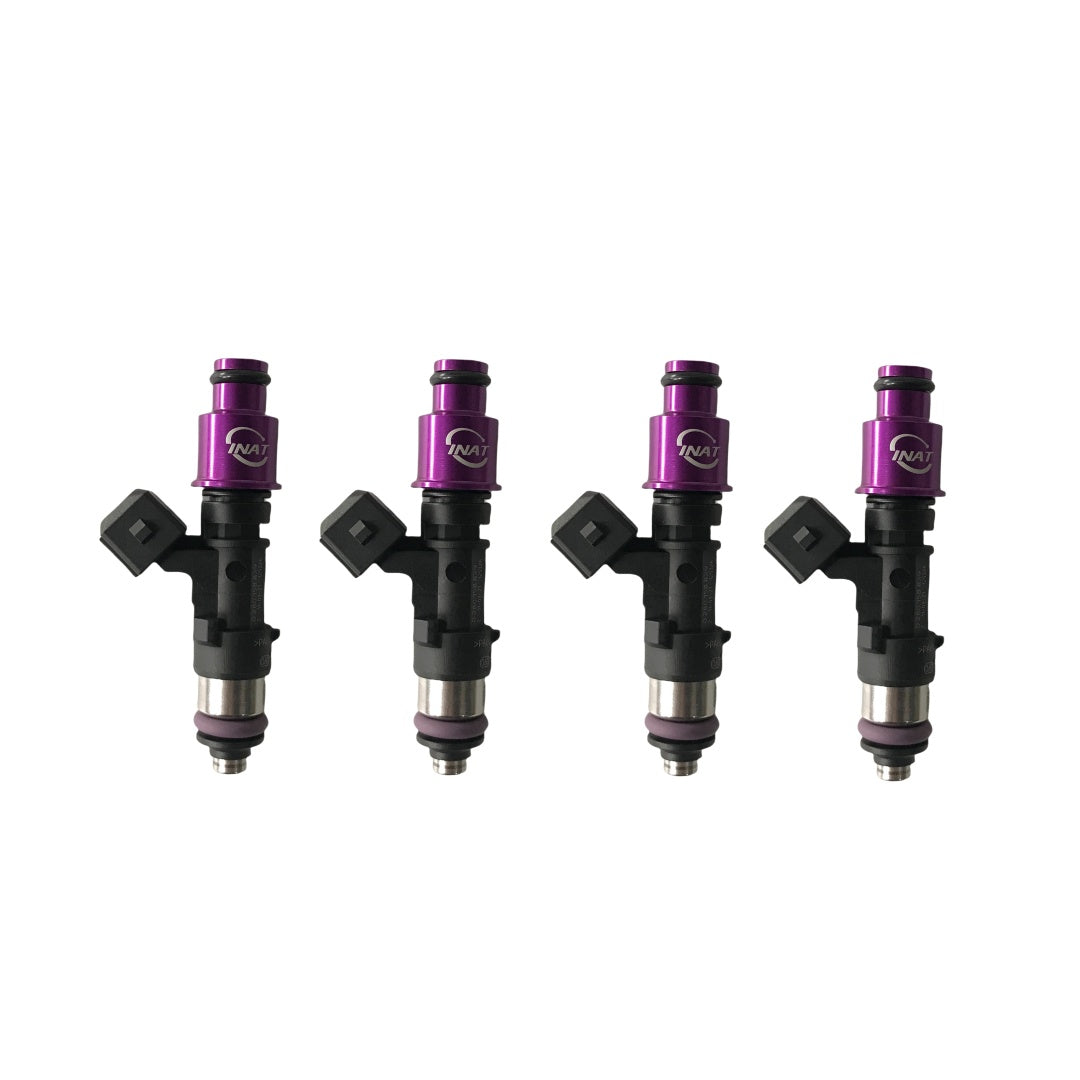

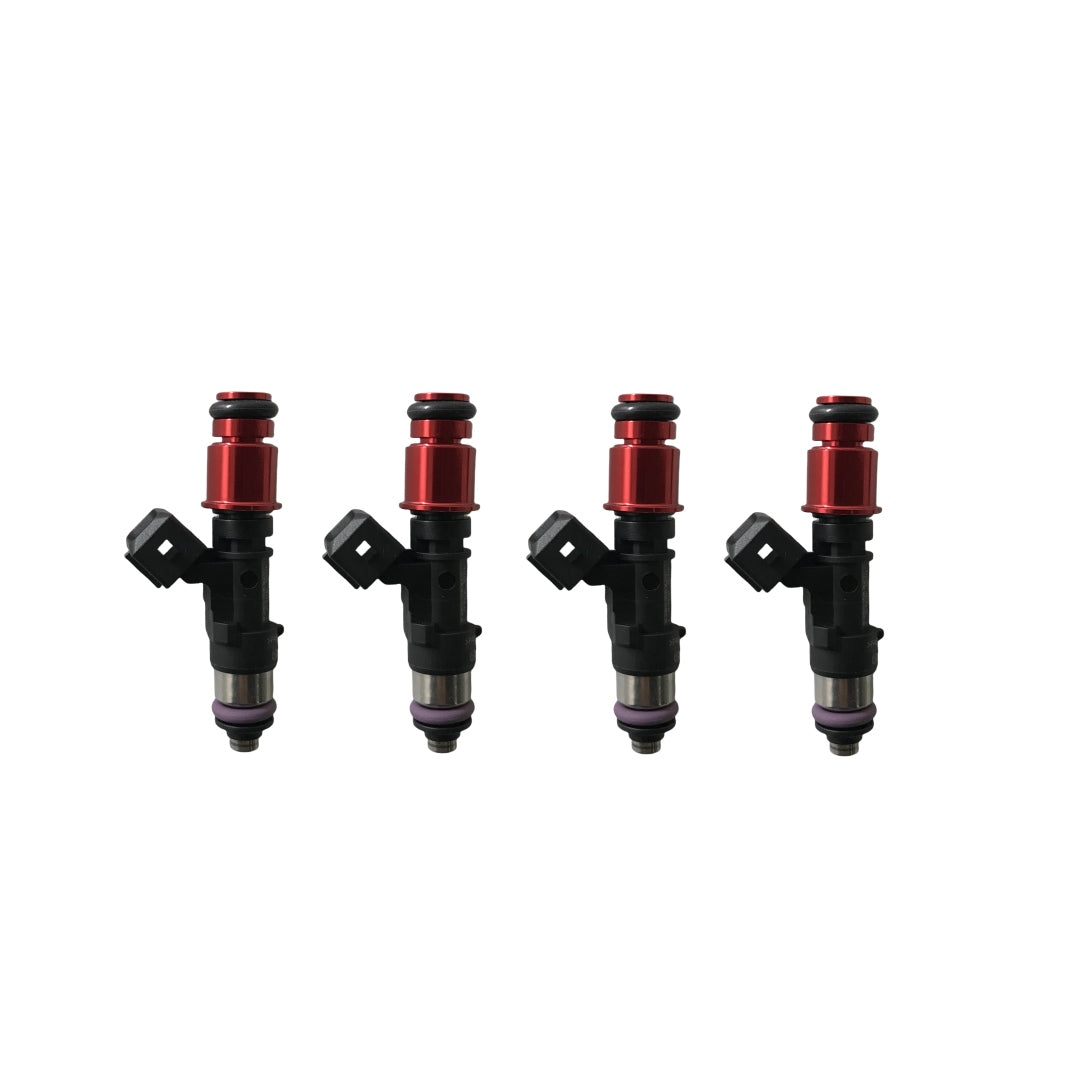

Expertly designed for optimal performance, this Bosch 210lb injector set is compatible with 1989-1990 and 1991-1998 Nissan 240SX models with a 2.4L KA24E or KA24DE engine. Its 2200cc capacity and 14mm/11mm adapter tops and 14mm bottom orings provide a precise fuel delivery, ensuring maximum power output. Upgrade to this set for a smooth and efficient ride.
*Genuine reliable and new Bosch injectors sold with the retail box.
1. Product Parameters:
Name: 2200cc NGI2
Part number: 0280158829
Package: 4 fuel injectors (1 piece/box)
Overall Length: 65mm
O-ring seat to seat Dimension: 48mm
Top o-ring: 14mm
Bottom o-ring: 14mm
Injector Body Diameter: 15.2mm
O-ring centerline to centerline Dimension: 53mm
Connector: EV1 Minitimer Jetronic ( EV1 to EV6/PNP/OBD2 adapters available)
Static flow rate: 210lb/hr @ 43.5PSI (3BAR) w/Gas 2200cc/min
Dead time: 0.45ms at 14 volts
Coil resistance: 9.1 Ohms / High Impedance
Spray pattern: Conical (30 degree)
Spray angle: Neutral (0 degree)
Acceptable fuels: Gas/Petrol, alcohol/methanol, E85, CNG
Unacceptable fuels: Gas/Petrol containing MTBE, specifically VP Q16 and VP Import or other MTBE oxygenated fuels
2. Vehicle Compatibility:
1989-1990 Nissan 240SX 2.4 KA24E
1991-1994 Nissan 240SX 2.4 KA24DE
1995-1998 Nissan 240SX 2.4 KA24DE
1991-1993 Nissan Silvia S13 2.0 SR20DET
1994-1998 Nissan Silvia S14 2.0 SR20DET
1999-2002 Nissan Silvia S15 2.0 SR20DET
